Spring MVC学习
自学导航
idea版+黑马程序员学习视频
笔记源码资料：
链接：https://pan.baidu.com/s/1hcgH_mkHJYuQQcM3VQaBWQ 提取码：rt0t 复制这段内容后打开百度网盘手机App，操作更方便哦–来自百度网盘超级会员V2的分享
eclipse版+尚硅谷学习视频
笔记源码资料：
链接：https://pan.baidu.com/s/1vNq5JTAp4sAu6e_eM_2qww 提取码：f8ac 复制这段内容后打开百度网盘手机App，操作更方便哦–来自百度网盘超级会员V2的分享
推荐：（本人采用） eclipse版+ssm（spring+spring mvc+mybatis）+尚硅谷_雷丰阳 学习视频
笔记资料工具：
链接：https://pan.baidu.com/s/1vi8-mYl8h5BLeO2QMN_-ww 提取码：czx8 复制这段内容后打开百度网盘手机App，操作更方便哦–来自百度网盘超级会员V2的分享
一、Spring MVC简介
MVC：新的软件架构模式
M：Model模型：封装和映射数据（JavaBean）
V：View视图：界面显示工作（.jsp）
C：Controller控制器：控制整个网站的跳转逻辑（Servlet）
二、HelloWorld:

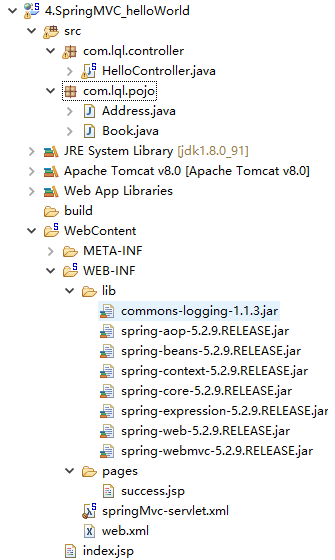

新建Web动态工程：
1、导包
spring相关jar包（spring-5.2.9）
链接：https://pan.baidu.com/s/15X79BzT2_dGS_wviCJiKYQ 提取码：8e71 复制这段内容后打开百度网盘手机App，操作更方便哦–来自百度网盘超级会员V2的分享
- 核心容器模块：
- web模块：
2、写配置
- web.xml：
配置springmvc的前端控制器，指定springmvc配置文件位置
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd" id="WebApp_ID" version="3.1">
<display-name>1.SpringMVC_helloWorld</display-name>
<welcome-file-list>
<welcome-file>index.jsp</welcome-file>
</welcome-file-list>
<!-- SpringMVC思想是有一个前端控制器能拦截所有请求，并智能派发
这个前端控制器是一个Servlet：应该在web.xml中配置这个servlet来拦截所有请求
-->
<!-- The front controller of this Spring Web application, responsible for handling all application requests -->
<servlet>
<servlet-name>springDispatcherServlet</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<!-- contextConfigLocation：指定springMVC配置文件位置 -->
<param-name>contextConfigLocation</param-name>
<param-value>classpath:springmvc.xml</param-value>
</init-param>
<!-- servlet启动加载，servlet原本是第一次访问创建对象；
load-on-startup:服务启动的时候创建对象：值越小优先级越高，越先创建对象；
-->
<load-on-startup>1</load-on-startup>
</servlet>
<!-- Map all requests to the DispatcherServlet for handling -->
<servlet-mapping>
<servlet-name>springDispatcherServlet</servlet-name>
<!--
/*和/都是拦截所有请求；/：会拦截所有请求，但不会拦截*.jsp；能保证jsp访问正常；
/*的范围更大；还会拦截到*.jsp这些请求；一旦拦截jsp页面就不能显示了；
-->
<url-pattern>/</url-pattern>
</servlet-mapping>
</web-app>
- 框架自身
springmvc.xml：
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
<!-- 扫描所有组件 -->
<context:component-scan base-package="com.lql"/>

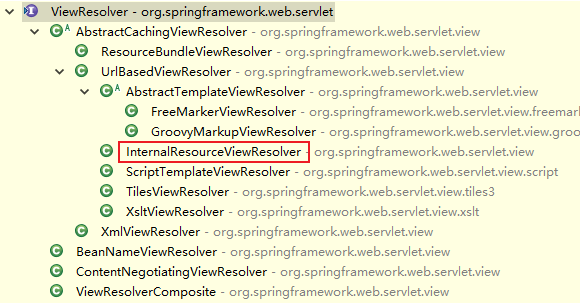

<!-- 配置一个视图解析器：能帮我们拼接页面地址 -->
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/pages/"></property>
<property name="suffix" value=".jsp"></property>
</bean>
</beans>
Controller类：
package com.lql.controller;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
/**
* 1.告诉SpringMVC这是一个处理器，可以处理请求
* @Controller，表示哪个组件是控制器
* @author 陆乾龙
*
*/
@Controller
public class MyFirstController {
/**
* /代表从当前项目下开始：处理当前项目下的hello请求
*/
@RequestMapping("/hello")
public String myfirstRequest(){
System.out.println("请求收到了....正在处理中");
//视图解析器自动拼串
//<property name="prefix" value="/WEB-INF/pages/"></property>
//<property name="suffix" value=".jsp"></property>
// (拼接)/WEB-INF/pages/+返回值(success)+后缀(.jsp)
return "success";
}
public MyFirstController() {
// TODO Auto-generated constructor stub
}
}

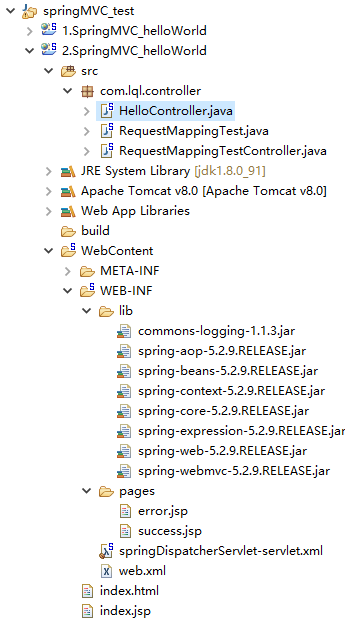

- 总体架构：
3、测试
4、HelloWorld细节

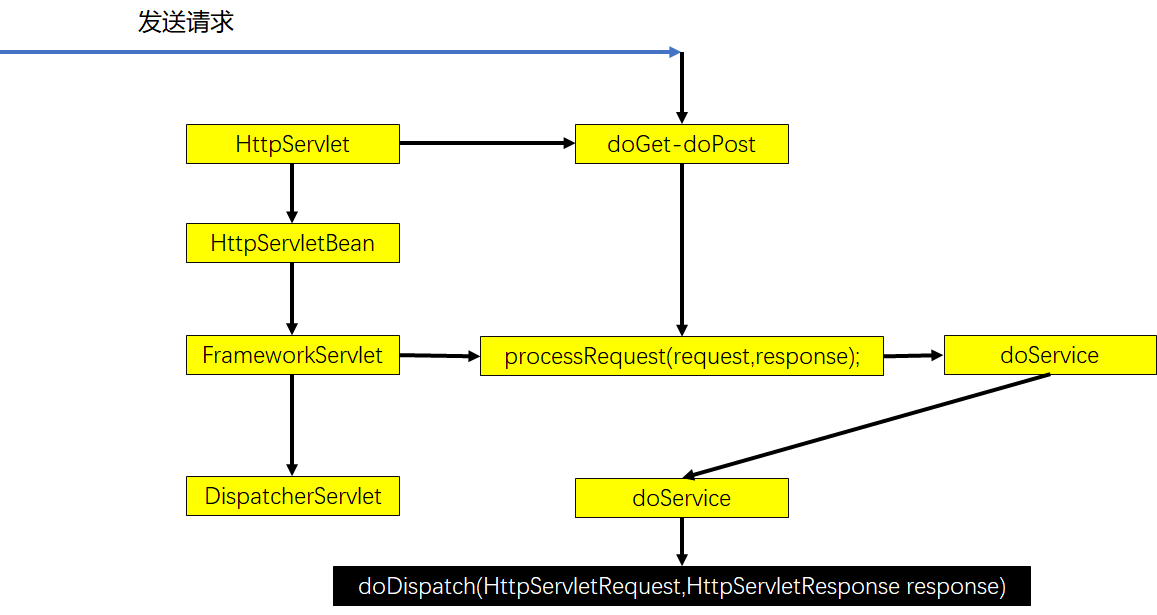

3.总体架构：
4.web.xml:
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd" id="WebApp_ID" version="3.1">
<display-name>2.SpringMVC_helloWorld</display-name>
<welcome-file-list>
<welcome-file>index.jsp</welcome-file>
</welcome-file-list>
<!-- The front controller of this Spring Web application, responsible for handling all application requests -->
<servlet>
<servlet-name>springDispatcherServlet</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<!-- <init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:springmvc.xml</param-value>
</init-param> -->
<load-on-startup>1</load-on-startup>
</servlet>
<!-- Map all requests to the DispatcherServlet for handling -->
<!-- /：拦截所有请求，不拦截jsp页面（*.jsp请求）
/*：拦截所有请求，拦截jsp页面（*.jsp请求）
处理*.jsp是tomcat做的事，所有项目的小web.xml都是继承于大web.xml
DefaultServlet是Tomcat中处理静态资源的；
除过jsp和servlet外剩下的都是静态资源，
index.html是静态资源，tomcat就会在服务器下找到这个资源并返回；
我们前端控制器的/禁用了tomcat服务器中的DefaultServlet
1）服务器的大web.xml中有一个DefaultServlet是url-pattern=/
2)我们的配置中前端控制器url-pattern=/
静态资源会来到DispatcherServlet（前端控制器）看哪个方法的RequestMapping是这个index.html
3)为什么jsp能访问呢？因为我们没有覆盖服务器中的JspServlet的配置
4）/* 直接就是拦截所有请求；写/，也是为了迎合后来的Rest风格的URL地址
REST:资源表现层状态转化
-->
<servlet-mapping>
<servlet-name>springDispatcherServlet</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
</web-app>
5.springDispatcherServlet-servlet.xml:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
<context:component-scan base-package="com.lql"></context:component-scan>
<!-- 视图解析器，可以简化方法的返回值，返回值就是作为目标页面地址，
只不过视图解析器可以帮我们拼串
-->
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/pages/"></property>
<property name="suffix" value=".jsp"></property>
</bean>
</beans>
6.Controller类：
package com.lql.controller;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
/**
* 1.告诉SpringMVC这个类是一个处理器
* @author 陆乾龙
*
*
*HelloWorld 细节：
*1、运行流程：
* 1）、客户端点击链接会发送http://localhost:8080/springmvc/hello
* 2）、来到tomcat服务器
* 3）、SpringMVC的前端控制器收到所有请求
* 4）、来看请求地址和@RequestMapping标注的哪个匹配，来找到底使用哪个类的哪个方法
* 5）、前端控制器找到了目标处理器类和目标方法，直接利用反射执行目标方法
* 6）、方法执行完成以后会有一个返回值，SpringMVC认为这个返回值就是要去的页面地址
* 7）、拿到方法返回值以后，用视图解析器进行拼串得到完整的页面地址
* 8）、拿到页面地址，前端控制器帮我们转发到页面
*
*2、@RequestMapping：
* 就是告诉SpringMVC，这个方法用来处理什么请求；
* 这个/是可以省略的，即使省略了，也是默认从当前项目下开始
* 习惯加上比较好 /hello
* @RequestMapping的使用（后面再说）
*
*3、如果不指定配置文件位置
* 也会默认去找一个文件：/WEB-INF/springDispatcherServlet-servlet.xml
* 就在web应用的/WEB-INF下创建一个名叫 前端控制器名-servlet.xml
*/
@Controller
public class HelloController {
@RequestMapping("/hello03")
public String hello(){
return "error";
}
@RequestMapping("/handle01")
public String hilo(){
return "success";
}
@RequestMapping("/hello02")
public String hi(){
System.out.println("hi.....");
return "success";
}
}
===============================================================
package com.lql.controller;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
/**
* @RequestMapping 模糊匹配功能
* @author 陆乾龙
*
* URL地址可以写模糊的通配符：
* ?：能替代任意一个字符
* *：能替代任意多个字符，和一层路径
* **：能替代多层路径
*
*/
@Controller
public class RequestMappingTest {
@RequestMapping("/antTest01")
public String antTest01(){
System.out.println("antTest01...");
return "success";
}
/**
* ?匹配一个字符（0个多个都不行）
* 模糊和精确多个匹配情况下，精确优先。
*/
@RequestMapping("/antTest0?")
public String antTest02(){
System.out.println("antTest02...");
return "success";
}
/**
* *匹配任意多个字符
* @return
*/
@RequestMapping("/antTest0*")
public String antTest03(){
System.out.println("antTest03...");
return "error";
}
/**
* *：匹配一层路径
* @return
*/
@RequestMapping("/a/*/antTest01")
public String antTest04(){
System.out.println("antTest04...");
return "error";
}
/**
* **：匹配多层路径
* @return
*/
@RequestMapping("/a/**/antTest01")
public String antTest05(){
System.out.println("antTest05...");
return "error";
}
//路径上可以有占位符，占位符语法就是可以任意路径的地方写一个{变量名}
// /user/admin /user/lql
//路径上的占位符只能占一层路径
@RequestMapping("/user/{id}")
public String pathVariableTest(@PathVariable("id")String id){
System.out.println("路径上的第一个占位符的值："+id);
return "success";
}
}
===============================================================
package com.lql.controller;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
/**
* 为当前类所有的方法的请求地址指定一个基准路径
* @author 陆乾龙
*
*/
@Controller
@RequestMapping("/haha")
public class RequestMappingTestController {
@RequestMapping("/handle01")
public String handle01(){
System.out.println("RequestMappingTestController....handle01");
return "success";
}
/**
* RequestMapping的其他属性
* method：限定请求方式
* HTTP协议中的所有请求方式：
* 【GET】, HEAD, 【POST】, PUT, PATCH, DELETE, OPTIONS, TRACE
* GET、POST
* method=RequestMethod.POST：只接收这种类型的请求，默认是什么都可以；
* 不是规定的方式报错：4xx：都是客户端错误
* Request method 'GET' not supported(a标签是GET请求)
*
* params：规定请求参数
* params 和 headers支持简单的表达式：
param1: 表示请求必须包含名为 param1 的请求参数
eg：params={"username"}:
发送请求的时候必须带上一个名为username的参数，没带404；
!param1: 表示请求不能包含名为 param1 的请求参数
eg：params={"!username"}:
发送请求的时候必须不携带一个名为username的参数，带了404；
param1 != value1: 表示请求包含名为 param1 的请求参数，但其值不能为 value1
eg：params={"username!=123"}:
发送请求的时候携带username的值必须不是123（不带username或者username不是123）
{"param1=value1", "param2"}: 请求必须包含名为 param1 和param2 的两个请求参数，且 param1 参数的值必须为 value1
eg:params={"username!=123","pwd","!age"}
请求参数必须满足以上规则：
请求的username不能是123，必须有pwd的值，不能有age
* headers：规定请求头，也和params一样，能写简单的表达式
*
* consume：只接受内容类型是哪种的请求，规定请求头中的Content-type
* produces：告诉浏览器返回的内容类型是什么，给响应头加上Content-type/html;charset=utf-8
*/
@RequestMapping(value="/handle02",method=RequestMethod.POST)
public String handle02(){
System.out.println("handle02....");
return "success";
}
@RequestMapping(value="/handle03",params={"username!=123","pwd","!age"})
public String handle03(){
System.out.println("RequestMappingTestController....handle03");
return "success";
}
/**
* User-Agent:浏览器信息
* 让火狐能访问，谷歌不能访问(自己查浏览器的User-Agent)
*
* 谷歌：
* User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/86.0.4240.198 Safari/537.36
*
* 火狐：
*
* User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:82.0) Gecko/20100101 Firefox/82.0
* @return
*/
@RequestMapping(value="/handle04",headers={"User-Agent=Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:82.0) Gecko/20100101 Firefox/82.0"})
public String handle04(){
System.out.println("handle04....");
return "success";
}
}
7.index.jsp:
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
<!-- 以前一个servlet配置url-pattern(/hello) -->
<a href="handle01">你好</a><br>
<a href="hello02">你好</a><br>
<a href="hello03">你好</a><br>
<hr>
<h1>RequestMapping测试</h1>
<a href="handle01">test01-写在方法上的requestMapping</a><br>
<a href="haha/handle01">test01-写在类上的requestMapping</a><br>
<h1>测试RequestMapping的属性</h1>
<a href="haha/handle02">handle02</a><br><br>
<form action="haha/handle02" method="post">
<input type="submit"/>
</form>
<a href="haha/handle03">handle03--测试params属性</a><br>
<a href="haha/handle04">handle04--测试headers</a><br>
<hr/>
<h1>RequestMapping-Ant风格的URL</h1>
<a href="antTest01">精确请求地址-antTest01</a>
<br><br><br>
<a href="user/admin">测试PathVariable</a>
</body>
</html>
三、HiddenHttpMethodFilter (==REST==)
REST即表述性状态传递（英文：Representational State Transfer，简称REST）是Roy Fielding博士在2000年他的博士论文中提出来的一种软件架构风格。
1、REST风格是什么？
① REST：即 Representational State Transfer。（资源）表现层状态转化。是目前最流行的一种互联网软件架构。它结构清晰、符合标准、易于理解、扩展方便，所以正得到越来越多网站的采用
-
资源（Resources）：网络上的一个实体，或者说是网络上的一个具体信息。
它可以是一段文本、一张图片、一首歌曲、一种服务，总之就是一个具体的存在。
可以用一个URI（统一资源定位符）指向它，每种资源对应一个特定的 URI 。
获取这个资源，访问它的URI就可以，因此 URI 即为每一个资源的独一无二的识别符。
-
表现层（Representation）：把资源具体呈现出来的形式，叫做它的表现层（Representation）。比如，文本可以用 txt 格式表现，也可以用 HTML 格式、XML 格式、JSON 格式表现，甚至可以采用二进制格式。
-
状态转化（State Transfer）：每发出一个请求，就代表了客户端和服务器的一次交互过程。HTTP协议，是一个无状态协议，即所有的状态都保存在服务器端。因此，如果客户端想要操作服务器，必须通过某种手段，让服务器端发生“状态转化”（State Transfer）。
而这种转化是建立在表现层之上的，所以就是 “表现层状态转化”。
-
具体说，就是 HTTP协议里面，四个表示操作方式的动词：GET、POST、PUT、DELETE。
它们分别对应四种基本操作：GET 用来获取资源，POST 用来新建资源，PUT 用来更新资源，DELETE 用来删除资源。
② URL风格
示例：
| 请求路径 | 请求方法 | 作用 |
|---|---|---|
| -/user/1 | HTTP GET | 得到id为1的user |
| -/user/1 | HTTP DELETE | 删除id为1的user |
| -/user/1 | HTTP PUT | 更新id为1的user |
| -/user | HTTP POST | 新增user |
③ HiddenHttpMethodFilter
浏览器 form 表单只支持 GET 与 POST 请求，而DELETE、PUT 等 method 并不支持，
Spring3.0 添加了一个过滤器，可以将这些请求转换为标准的 http 方法，使得支持 GET、POST、PUT 与 DELETE 请求。
@Override
protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain)
throws ServletException, IOException {
//获取表单上_method的值
HttpServletRequest requestToUse = request;
//判断如果表单是一个post而且_method有值
if ("POST".equals(request.getMethod()) && request.getAttribute(WebUtils.ERROR_EXCEPTION_ATTRIBUTE) == null) {
String paramValue = request.getParameter(this.methodParam);
if (StringUtils.hasLength(paramValue)) {
String method = paramValue.toUpperCase(Locale.ENGLISH);
if (ALLOWED_METHODS.contains(method)) {
requestToUse = new HttpMethodRequestWrapper(request, method);
}
}
}
//直接放行
filterChain.doFilter(requestToUse, response);
}

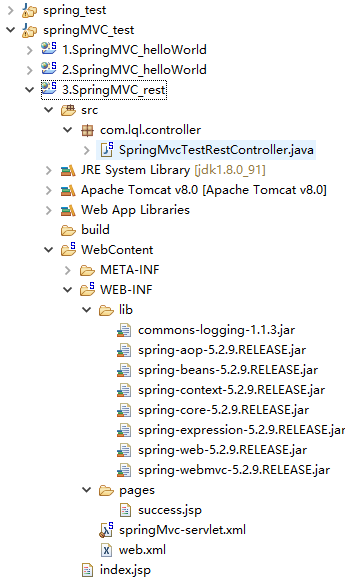

2、总体架构
3、web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd" id="WebApp_ID" version="3.1">
<display-name>3.SpringMVC_rest</display-name>
<welcome-file-list>
<welcome-file>index.jsp</welcome-file>
</welcome-file-list>
<!-- The front controller of this Spring Web application, responsible for handling all application requests -->
<servlet>
<servlet-name>springMvc</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<!-- <init-param>
<param-name>contextConfigLocation</param-name>
<param-value>location</param-value>
</init-param> -->
<load-on-startup>1</load-on-startup>
</servlet>
<!-- Map all requests to the DispatcherServlet for handling -->
<servlet-mapping>
<servlet-name>springMvc</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!-- 配置转化请求转化 -->
<filter>
<filter-name>HiddenHttpMethodFilter</filter-name>
<filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>HiddenHttpMethodFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>
4、springMvc-servlet.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
<context:component-scan base-package="com.lql"></context:component-scan>
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/pages/"></property>
<property name="suffix" value=".jsp"></property>
</bean>
</beans>
5、Controller类
package com.lql.controller;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
@Controller
public class SpringMvcTestRestController {
//添加图书
@RequestMapping(value="/book",method=RequestMethod.POST)
public String addBook(){
System.out.println("成功添加图书");
return "success";
}
//查询图书
@RequestMapping(value="/book/{bid}",method=RequestMethod.GET)
public String selectBook(@PathVariable("bid")Integer bid){
System.out.println("成功查询到"+bid+"号图书");
return "success";
}
//修改图书
//@ResponseBody
@RequestMapping(value="/book/{bid}",method=RequestMethod.PUT)
public String updateBook(@PathVariable("bid")Integer bid){
System.out.println("成功修改"+bid+"号图书");
return "success";
//return "redirect:/success";//重定向到一个没有指定 method的 Handler方法
}
/*@RequestMapping(value="/success")
public String successGenecal(){
return "success";//由该方法 转发到success.jsp页面
}*/
//删除图书
//@ResponseBody
@RequestMapping(value="/book/{bid}",method=RequestMethod.DELETE)
public String deleteBook(@PathVariable("bid")Integer bid){
System.out.println("成功删除"+bid+"号图书");
return "success";
//return "redirect:/success";//重定向到一个没有指定 method的 Handler方法
}
}
6、index.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
<!-- 发起图书的增删改查请求：使用Rest风格的URL地址：
请求url 请求方式 表示含义
/book/1 GET 查询1号图书
/book/1 DELETE 删除1号图书
/book/1 PUT 更新1号图书
/book POST 添加图书
从页面发起PUT、DELETE形式的请求？Spring提供了对Rest风格的支持：
1）、SpringMVC中有一个Filter，可以把普通的请求转化为规定形式的请求
配置这个filter:
<filter>
<filter-name>HiddenHttpMethodFilter</filter-name>
<filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>HiddenHttpMethodFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
2）、如何发起其他形式请求？
按照以下要求：
1、创建一个post类型的表单
2、表单项中携带一个_method的参数
3、这个_method的值就是DELETE、PUT
-->
<form action="book" method="post">
<input type="submit" value="添加图书"/>
</form><br>
<form action="book/1" method="get">
<input type="submit" value="查询图书"/>
</form><br>
<form action="book/1" method="post">
<input type="hidden" name="_method" value="delete"/>
<input type="submit" value="删除图书"/>
</form><br>
<form action="book/1" method="post">
<input type="hidden" name="_method" value="put"/>
<input type="submit" value="修改图书"/>
</form><br>
</body>
</html>
7、success.jsp:
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8" isErrorPage="true" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
<h1>成功了，666！</h1>
</body>
</html>
==注意==：

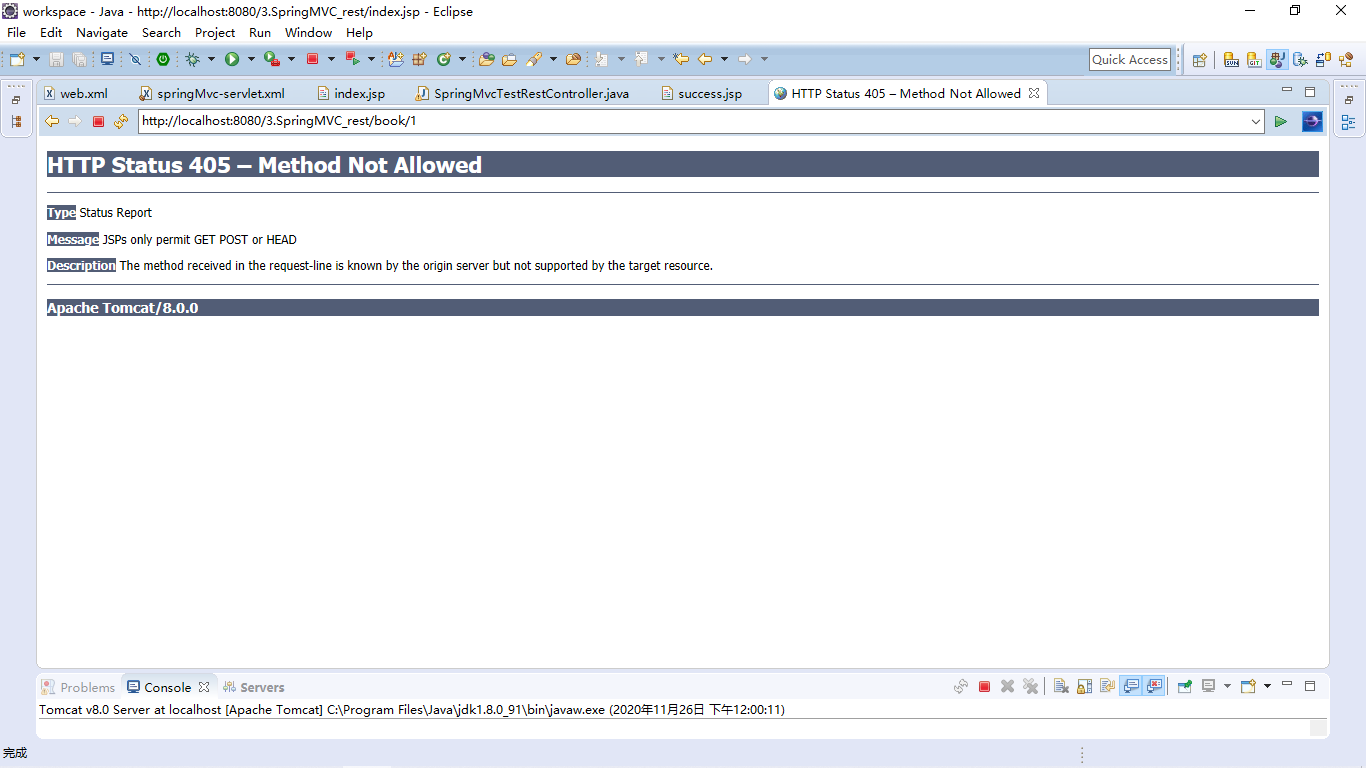

高版本Tomcat：Rest支持有问题：
解决方案（两种方式）：
1.重定向：见上图Controller类里配置。

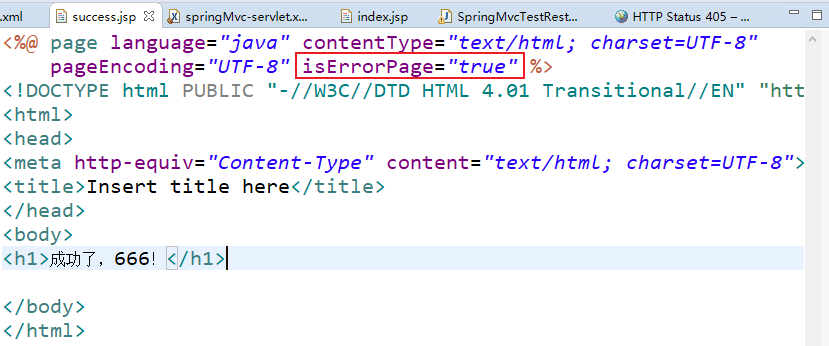

2.修改jsp：
四、请求参数
1、总体架构
2、web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd" id="WebApp_ID" version="3.1">
<display-name>4.SpringMVC_helloWorld</display-name>
<welcome-file-list>
<welcome-file>index.jsp</welcome-file>
</welcome-file-list>
<!-- The front controller of this Spring Web application, responsible for handling all application requests -->
<servlet>
<servlet-name>springMvc</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<!-- <init-param>
<param-name>springMvc</param-name>
<param-value>classpath:springmvc.xml</param-value>
</init-param> -->
<load-on-startup>1</load-on-startup>
</servlet>
<!-- Map all requests to the DispatcherServlet for handling -->
<servlet-mapping>
<servlet-name>springMvc</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!-- 配置一个字符编码的Filter；一定注意filter一般都在其他Filter之前；-->
<filter>
<filter-name>CharacterEncodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<!-- encoding：指定解决POST请求乱码 -->
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
<init-param>
<!-- forceResponseEncoding：顺手解决响应乱码；response.setCharacterEncoding(encoding); -->
<param-name>forceResponseEncoding</param-name>
<param-value>true</param-value>
</init-param>
<init-param>
<param-name>forceRequestEncoding</param-name>
<param-value>true</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>CharacterEncodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!-- 支持Rest风格的Filter -->
<filter>
<filter-name>HiddenHttpMethodFilter</filter-name>
<filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>HiddenHttpMethodFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!-- 使用SpringMVC控制器，写完就直接写字符编码过滤器；
Tomcat一装上，上手就是server.xml的8080处添加URIEncoding="UTF-8" -->
</web-app>
3、springMvc-servlet.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
<context:component-scan base-package="com.lql"></context:component-scan>
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/pages/"></property>
<property name="suffix" value=".jsp"></property>
</bean>
</beans>
4、Pojo
package com.lql.pojo;
public class Address {
private String province;
private String city;
private String street;
public String getProvince() {
return province;
}
public void setProvince(String province) {
this.province = province;
}
public String getCity() {
return city;
}
public void setCity(String city) {
this.city = city;
}
public String getStreet() {
return street;
}
public void setStreet(String street) {
this.street = street;
}
@Override
public String toString() {
return "Address [province=" + province + ", city=" + city + ", street=" + street + "]";
}
}
===============================================================
package com.lql.pojo;
public class Book {
private String bookName;
private String author;
private Double price;
private Integer stock;
private Integer salse;
private Address address;
public Address getAddress() {
return address;
}
public void setAddress(Address address) {
this.address = address;
}
public String getBookName() {
return bookName;
}
public void setBookName(String bookName) {
this.bookName = bookName;
}
public String getAuthor() {
return author;
}
public void setAuthor(String author) {
this.author = author;
}
public Double getPrice() {
return price;
}
public void setPrice(Double price) {
this.price = price;
}
public Integer getStock() {
return stock;
}
public void setStock(Integer stock) {
this.stock = stock;
}
public Integer getSalse() {
return salse;
}
public void setSalse(Integer salse) {
this.salse = salse;
}
@Override
public String toString() {
return "Book [bookName=" + bookName + ", author=" + author + ", price=" + price + ", stock=" + stock
+ ", salse=" + salse + ", address=" + address + "]";
}
}
5、Controller类
package com.lql.controller;
import java.io.BufferedReader;
import java.io.PrintWriter;
import javax.servlet.ServletInputStream;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.CookieValue;
import org.springframework.web.bind.annotation.RequestHeader;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import com.lql.pojo.Book;
@Controller
public class HelloController {
@RequestMapping("/hello")
public String handle01(){
System.out.println("handle01....");
return "success";
}
/**
* SpringMVC如何获取请求带来的各种信息
* 默认方式获取请求参数：
* 直接给方法入参写一个和请求参数名相同的变量，这个变量就来接收请求参数的值
* 带：有值； 没带：null；
*
* @RequestParam：获取请求参数(参数默认是必须带的)
* @RequestParam("user")String username
* 解释username = request.getParameter("user")
*
* @RequestParam("user")
* @PathVariable("user") /book/【{user}pathvariabale】?【use=admin（ReqeestParam）】
*
* 属性：
* value：指定要获取的参数key
* required：这个参数是否必须的
* defaultValue：默认值，没带默认是null
*
*
* @RequestHeader：获取请求头中某个key的值
* request.getHeader("User-Agent")；
* @RequestHeader("User-Agent")String userAgent：
* userAgent = request.getHeader("User-Agent")
* 如果请求头中没有这个值，就会报错
* value()
* required()
* defaultValue()
*
* @CookieValue：获取某个cookie的值；
* 以前的操作获取某个cookie：
* cookie[] cookies = request.getCookies();
* for(cookie c:cookies){
* if(c.getName().eqals("JSESSIONID")){
* String cv = c.getValue();
* }}
*/
@RequestMapping("/handle01")
public String handle02(@RequestParam(value="user33",required=false,defaultValue="你没带")String username,
@RequestHeader(value="Agent",required=false,defaultValue="她也没带")String userAgent,
@CookieValue(value="JSESSIONIDhaha",required=false)String jid){
System.out.println("这个变量的值："+username);
System.out.println("请求头中浏览器的信息："+userAgent);
System.out.println("cookie中的jid的值："+jid);
return "success";
}
/**
* 如果我们的请求参数是一个POJO，
* SpringMVC会自动的为这个POJO进行赋值：
* 1）、将POJO中的每一个属性，从request参数中尝试获取出来，并封装即可；
* 2）、还可以级联封装：属性的属性
* 3）、请求参数的参数名和对象中的属性名一一对应就行
*
*
* 提交的数据可能有乱码：
* 请求乱码：
* GET请求：改server.xml：在8080端口处URIEncoding="UTF-8"(我的里面没有)
* POST请求：
* 在第一次获取请求参数之前设置
* request.setCharacterEncoding("UTF-8");
* 自己写一个filter；SpringMVC有这个filter
* 响应乱码：
* response.setContentType("text/html;charset=utf-8")
* @param book
* @return
*/
@RequestMapping("/book")
public String addbook(Book book){
System.out.println("我要保存的图书"+book);
return "success";
}
/**
* SpringMVC可以直接在参数写原生API:
* HttpServletRequest
* HttpServletResponse
* HttpSession
*
* java.security.Principal
* Locale：国际化有关的区域信息对象
* InputStream：
* ServletInputStream inputStream = request.getInputStream();
* Outputstream：
* ServletOutputStream outputStream = response.getOutputStream();
* Reader：
* BufferedReader reader = request.getReader();
* Writer：
* PrintWriter writer = response.getWriter();
*/
@RequestMapping("/handle03")
public String handle03(HttpSession session,
HttpServletRequest request,HttpServletResponse response){
request.setAttribute("reqParam", "我是请求域中的");
session.setAttribute("sessionParam", "我是Session域中的");
return "success";
}
}
6、index.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
<a href="hello">hello</a><br>
<a href="handle01?user=tomcat">handle01</a><br>
<a href="handle03">handle03</a><br>
<form action="book" method="post">
书名:<input type="text" name="bookName"/><br>
作者:<input type="text" name="author"/><br>
价格:<input type="text" name="price"/><br>
库存:<input type="text" name="stock"/><br>
销量:<input type="text" name="salse"/><br>
<hr>
省：<input type="text" name="address.province"/>
市：<input type="text" name="address.city"/>
街道:<input type="text" name="address.street"/><br>
<input type="submit"/>
</form>
</body>
</html>
***************************************************************
===============================================================
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
<h1>成功了，66666666666666</h1>
请求：${reqParam }<br>
session:${sessionScope.sessionParam}
</body>
</html>
五、数据输出

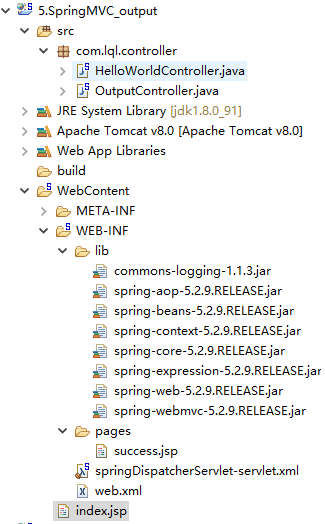

1、总体架构
2、web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd" id="WebApp_ID" version="3.1">
<display-name>5.SpringMVC_output</display-name>
<welcome-file-list>
<welcome-file>index.html</welcome-file>
<welcome-file>index.htm</welcome-file>
<welcome-file>index.jsp</welcome-file>
<welcome-file>default.html</welcome-file>
<welcome-file>default.htm</welcome-file>
<welcome-file>default.jsp</welcome-file>
</welcome-file-list>
<!-- The front controller of this Spring Web application, responsible for handling all application requests -->
<servlet>
<servlet-name>springDispatcherServlet</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>
<!-- Map all requests to the DispatcherServlet for handling -->
<servlet-mapping>
<servlet-name>springDispatcherServlet</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!-- 字符编码过滤器 -->
<filter>
<filter-name>CharacterEncodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
<init-param>
<param-name>forceRequestEncoding</param-name>
<param-value>true</param-value>
</init-param>
<init-param>
<param-name>forceResponseEncoding</param-name>
<param-value>true</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>CharacterEncodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>
3、springDispatcherServlet-servlet.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
<context:component-scan base-package="com.lql"></context:component-scan>
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/pages/"></property>
<property name="suffix" value=".jsp"></property>
</bean>
</beans>
4、Controller类
package com.lql.controller;
import java.util.Map;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.ui.ModelMap;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.SessionAttributes;
import org.springframework.web.servlet.ModelAndView;
/**
* SpringMVC除过在方法上传入原生request和session外还能怎么样把数据带给页面:
*
* 1）、可以在方法处传入Map或者Model或者ModelMap；
* 给这些参数里面保存的所有数据都会放在请求域中，可以在页面获取
* 关系：
* Map、Model、ModelMap：最终都是BindingAwareModelMap在工作；
* 相当于给BindingAwareModelMap中保存的东西都会放在请求域中；
*
* Map(interface(jdk)) Model(interface(spring))
* || //
* || //
* \/ //
* ModelMap(class) //
* \\ //
* \\ //
* ExtendedModelMap
* ||
* \/
* BindingAwareModelMap
*
* 2）、方法的返回值可以变为ModelAndView类型：
* 既包含视图信息（页面地址）也包含模型数据（给页面带的数据）；
* 而且数据是放在请求域中；
* request session application
*
* 3）、SpringMVC提供了一种可以临时给Session域中保存数据的方式：
* 使用一个注解 @SessionAttributes(只能标在类上)
* @SessionAttributes(value="msg"):
* 给BindingAwareModelMap中保存的数据，或者ModelAndView中的数据，
* 同时给session放一份；
* value指定保存数据时要给session中放的数据的key；
*
* value={"haha","msg"}：只要保存的是这种key的数据，给Session中放一份
* types={String.class}：只要保存的是这种类型的数据，给Session中也放一份
*
* 后来推荐@SessionAttributes就别用了，可能会引发异常；
* 给session中放数据请使用原生API;
*
* @author 陆乾龙
*
*/
@SessionAttributes(value={"haha","msg"},types={String.class})
@Controller
public class OutputController {
// args:如何确定目标方法每一个参数的值，最难？
// method.invoke(this,)
@RequestMapping("/handle01")
public String handle01(Map<String,Object> map){
map.put("msg","你好");
map.put("hahaha", "哈哈哈");
System.out.println("map的类型："+map.getClass());
return "success";
}
/**
* Model：一个接口
* @param model
* @return
*/
@RequestMapping("/handle02")
public String handle03(Model model){
model.addAttribute("msg", "你好坏！");
model.addAttribute("haha",18);
System.out.println("model的类型："+model.getClass());
return "success";
}
@RequestMapping("/handle03")
public String handle03(ModelMap modelMap){
modelMap.addAttribute("msg", "你好棒！");
System.out.println("modelMap的类型："+modelMap.getClass());
return "success";
}
/**
* 返回值是ModelAndView；可以为页面携带数据
* @return
*/
@RequestMapping("/handle04")
public ModelAndView handle04(){
//之前的返回值我们就叫视图名；视图名视图解析器是会帮我们最终拼串得到页面的真实地址；
//ModelAndView modelAndView = new ModelAndView("success");
ModelAndView modelAndView = new ModelAndView();
modelAndView.setViewName("success");
modelAndView.addObject("msg", "你好哦！");
return modelAndView;
}
}
5、index.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
<a href="hello">hello</a><br>
<!-- SpringMVC如何给页面携带数据过来 -->
<a href="handle01">handle01</a><br>
<a href="handle02">handle02</a><br>
<a href="handle03">handle03</a><br>
<a href="handle04">handle04</a><br>
</body>
</html>
6、success.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
<h1>hello</h1>
pageContext：${pageScope.msg }<br>
request：${requestScope.msg }<br>
session：${sessionScope.msg }--${sessionScope.haha }--${sessionScope.hahaha }<br>
application：${applicationScope.msg }<br>
<%System.out.println("来到页面了...."); %>
</body>
</html>

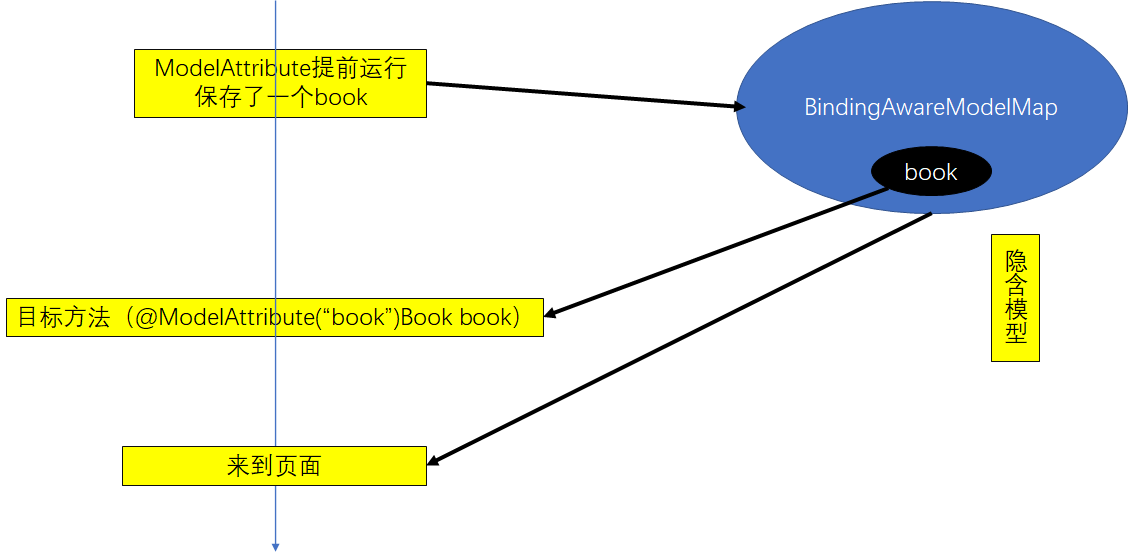

7、ModelAttribute原理：
六、SpringMVC源码
1、前端控制器
2、doDispatch()详细细节：
protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
HttpServletRequest processedRequest = request;
HandlerExecutionChain mappedHandler = null;
boolean multipartRequestParsed = false;
WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
try {
ModelAndView mv = null;
Exception dispatchException = null;
try {
//1、检查是否文件上传请求
processedRequest = checkMultipart(request);
multipartRequestParsed = (processedRequest != request);
// Determine handler for the current request.

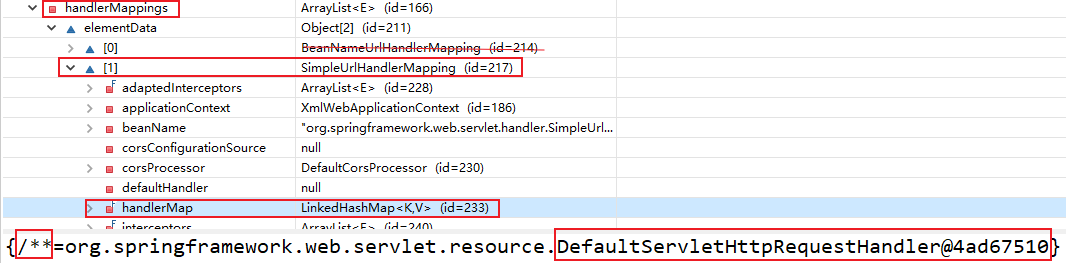

//2、根据当前的请求地址找到哪个类能来处理；

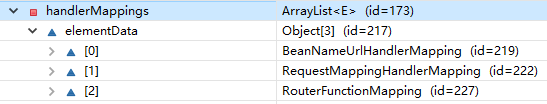

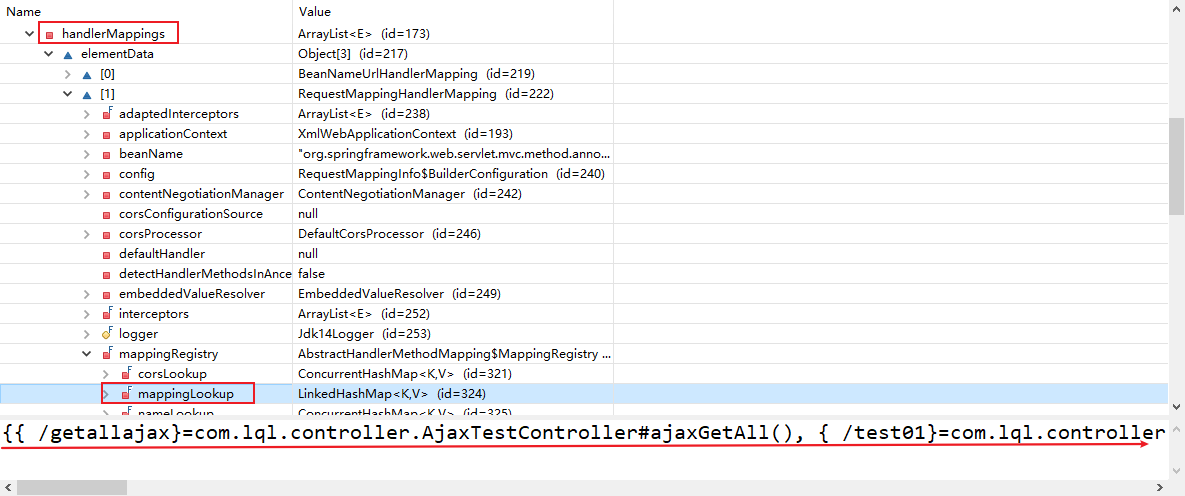

mappedHandler = getHandler(processedRequest);
//3、如果没有找到哪个处理器（控制器）能处理这个请求就404，或者抛异常
if (mappedHandler == null) {
noHandlerFound(processedRequest, response);
return;
}
// Determine handler adapter for the current request.

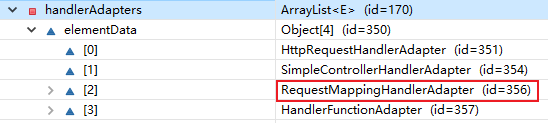

//4、拿到能执行这个类的所有方法的适配器（反射工具RequestMappingHandlerAdapter）；
HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
// Process last-modified header, if supported by the handler.
String method = request.getMethod();
boolean isGet = "GET".equals(method);
if (isGet || "HEAD".equals(method)) {
long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
return;
}
}
if (!mappedHandler.applyPreHandle(processedRequest, response)) {
return;
}
// Actually invoke the handler.处理（控制）器的方法被调用
//控制器（Controller），处理器（Handler）
//5、适配器来执行目标方法；将目标方法执行完成后的返回值作为视图名，设置保存到ModelAndView中
//目标方法无论怎么写，最终适配器执行完成以后都会将执行后的信息封装成ModelAndView

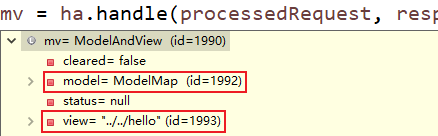

mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
if (asyncManager.isConcurrentHandlingStarted()) {
return;
}
applyDefaultViewName(processedRequest, mv); //如果没有视图名设置一个默认的视图名
mappedHandler.applyPostHandle(processedRequest, response, mv);
}
catch (Exception ex) {
dispatchException = ex;
}
catch (Throwable err) {
// As of 4.3, we're processing Errors thrown from handler methods as well,
// making them available for @ExceptionHandler methods and other scenarios.
dispatchException = new NestedServletException("Handler dispatch failed", err);
}
//转发到目标页面
//6、根据方法最终执行完成后封装的ModelAndView；转发到对应页面，而且ModelAndView中的数据可以从请求域中获取
processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
}
catch (Exception ex) {
triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
}
catch (Throwable err) {
triggerAfterCompletion(processedRequest, response, mappedHandler,
new NestedServletException("Handler processing failed", err));
}
finally {
if (asyncManager.isConcurrentHandlingStarted()) {
// Instead of postHandle and afterCompletion
if (mappedHandler != null) {
mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
}
}
else {
// Clean up any resources used by a multipart request.
if (multipartRequestParsed) {
cleanupMultipart(processedRequest);
}
}
}
}

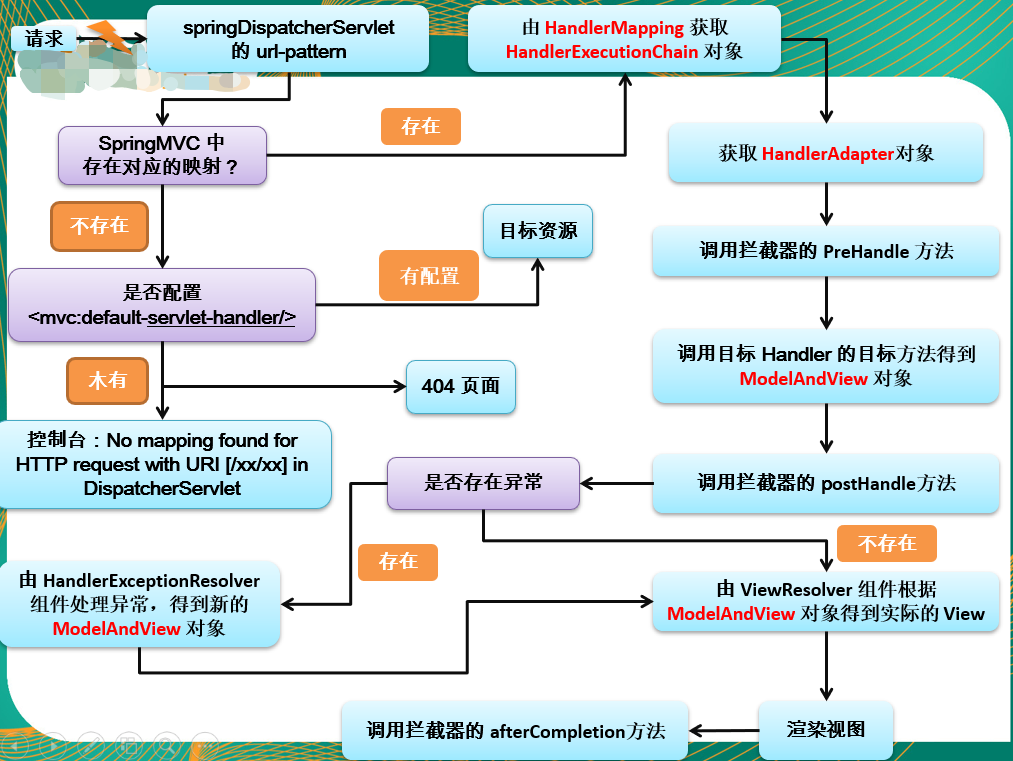

所有请求过来DispatcherServlet收到请求
调用**doDispatch()**方法进行处理
- getHandler()：根据当前请求地址找到能处理这个请求的目标处理器类（处理器）
- 根据当前请求在HandlerMapping中找到这个请求的映射信息，获取到目标处理器类
- ==getHandlerAdapter()：根据当前处理器类获取到能执行这个处理器方法的适配器==
- 根据当前处理器类找到当前类的HanderAdapter（适配器）
- ==使用刚才获取到的适配器（RequestMappingHandlerAdapter）执行目标方法==
- ==目标方法执行后会返回一个ModelAndView对象==
- ==根据ModelAndView的信息转发到具体的页面，并可以在请求域中取出ModelAndView中的模型数据==
3、getHandler()细节：
1.怎么根据当前请求就能找到哪个类能来处理
- **getHandler()**会返回目标处理器类的执行链
- handerMap：ioc容器创建Controller对象时扫描每个处理器都能处理什么请求。
protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
if (this.handlerMappings != null) {
for (HandlerMapping mapping : this.handlerMappings) {
HandlerExecutionChain handler = mapping.getHandler(request);
if (handler != null) {
return handler;
}
}
}
return null;
}
2.如何找到目标处理器类的适配器？
- 要拿适配器才去执行目标方法。
- RequestMappingHandlerAdapter：是HandlerAdapter的一个具体实现，主要用于将某个请求适配给
@RequestMapping类型的Handler处理。
protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
if (this.handlerAdapters != null) {
for (HandlerAdapter adapter : this.handlerAdapters) {
if (adapter.supports(handler)) {
return adapter;
}
}
}
throw new ServletException("No adapter for handler [" + handler +
"]: The DispatcherServlet configuration needs to include a HandlerAdapter that supports this handler");
}
DispatcherServlet中有几种引用类型的属性：
4、SpringMVC九大组件：
SpringMVC在工作的时候，关键位置都是由这些组件完成的：
公共点：九大组件全部都是接口：接口就是规范
1.SpringMVC的九大组件工作原理：
/** 文件上传解析器 */
@Nullable
private MultipartResolver multipartResolver;

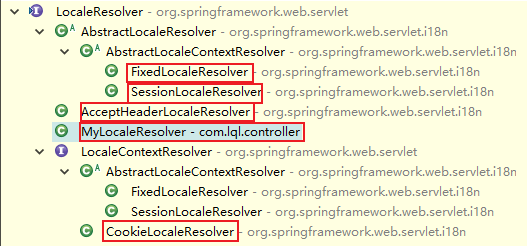

/** 区域信息解析器，和国际化有关 */
@Nullable
private LocaleResolver localeResolver;
/** 主题解析器：强大的主题效果解析器 */
@Nullable
private ThemeResolver themeResolver;
/** Handler映射信息：HandlerMapping */
@Nullable
private List<HandlerMapping> handlerMappings;
/** Handler的适配器 */
@Nullable
private List<HandlerAdapter> handlerAdapters;

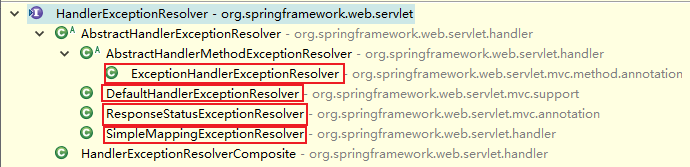

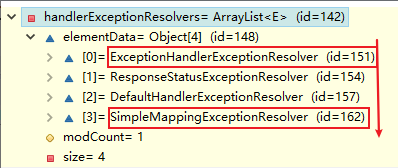

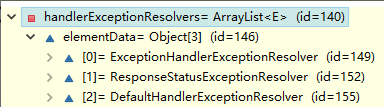

/** SpringMVC强大的异常解析功能：异常解析器 */
@Nullable
private List<HandlerExceptionResolver> handlerExceptionResolvers;
/** RequestToViewNameTranslator used by this servlet. */
@Nullable
private RequestToViewNameTranslator viewNameTranslator;
/** FlashMap+Manager：SpringMVC中允许重定向携带数据的功能 */
@Nullable
private FlashMapManager flashMapManager;
/** 视图解析器 */
@Nullable
private List<ViewResolver> viewResolvers;
2.DispatcherServlet中九大组件初始化的地方：
protected void initStrategies(ApplicationContext context) {
initMultipartResolver(context);
initLocaleResolver(context);
initThemeResolver(context);
initHandlerMappings(context);
initHandlerAdapters(context);
initHandlerExceptionResolvers(context);
initRequestToViewNameTranslator(context);
initViewResolvers(context);
initFlashMapManager(context);
}
可以在web.xml中修改DispatcherServlet某些属性的默认配置(不需要改)：
<init-param>
<param-name>detectAllHandlerMappings</param-name>
<param-value>false</param-value>
</init-param>

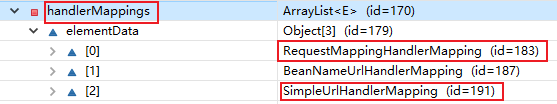

3.初始化HandlerMapping：
private void initHandlerMappings(ApplicationContext context) {
this.handlerMappings = null;
if (this.detectAllHandlerMappings) {
// Find all HandlerMappings in the ApplicationContext, including ancestor contexts.
Map<String, HandlerMapping> matchingBeans =
BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerMapping.class, true, false);
if (!matchingBeans.isEmpty()) {
this.handlerMappings = new ArrayList<>(matchingBeans.values());
// We keep HandlerMappings in sorted order.
AnnotationAwareOrderComparator.sort(this.handlerMappings);
}
}
else {
try {
HandlerMapping hm = context.getBean(HANDLER_MAPPING_BEAN_NAME, HandlerMapping.class);
this.handlerMappings = Collections.singletonList(hm);
}
catch (NoSuchBeanDefinitionException ex) {
// Ignore, we'll add a default HandlerMapping later.
}
}
// Ensure we have at least one HandlerMapping, by registering
// a default HandlerMapping if no other mappings are found.
if (this.handlerMappings == null) {
this.handlerMappings = getDefaultStrategies(context, HandlerMapping.class);
if (logger.isTraceEnabled()) {
logger.trace("No HandlerMappings declared for servlet '" + getServletName() +
"': using default strategies from DispatcherServlet.properties");
}
}
}
4.组件的初始化：
有些组件在容器中是使用类型找的，有些组件是使用id找的；
去容器中找这个组件，如果没有找到就用默认的配置；
5.未完待续(版本不一致)
mv = ha.handle(processedRequest, response, mappedHandler.getHandler()); 执行目标方法的细节；
||
/
mav = invokeHandlerMethod(request, response, handlerMethod);
||
/
@Nullable
protected ModelAndView invokeHandlerMethod(HttpServletRequest request,
HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
ServletWebRequest webRequest = new ServletWebRequest(request, response);
try {
WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);
ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);
ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);
if (this.argumentResolvers != null) {
invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
}
if (this.returnValueHandlers != null) {
invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);
}
invocableMethod.setDataBinderFactory(binderFactory);
invocableMethod.setParameterNameDiscoverer(this.parameterNameDiscoverer);
ModelAndViewContainer mavContainer = new ModelAndViewContainer();
mavContainer.addAllAttributes(RequestContextUtils.getInputFlashMap(request));
modelFactory.initModel(webRequest, mavContainer, invocableMethod);
mavContainer.setIgnoreDefaultModelOnRedirect(this.ignoreDefaultModelOnRedirect);
AsyncWebRequest asyncWebRequest = WebAsyncUtils.createAsyncWebRequest(request, response);
asyncWebRequest.setTimeout(this.asyncRequestTimeout);
WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
asyncManager.setTaskExecutor(this.taskExecutor);
asyncManager.setAsyncWebRequest(asyncWebRequest);
asyncManager.registerCallableInterceptors(this.callableInterceptors);
asyncManager.registerDeferredResultInterceptors(this.deferredResultInterceptors);
if (asyncManager.hasConcurrentResult()) {
Object result = asyncManager.getConcurrentResult();
mavContainer = (ModelAndViewContainer) asyncManager.getConcurrentResultContext()[0];
asyncManager.clearConcurrentResult();
LogFormatUtils.traceDebug(logger, traceOn -> {
String formatted = LogFormatUtils.formatValue(result, !traceOn);
return "Resume with async result [" + formatted + "]";
});
invocableMethod = invocableMethod.wrapConcurrentResult(result);
}
invocableMethod.invokeAndHandle(webRequest, mavContainer);
if (asyncManager.isConcurrentHandlingStarted()) {
return null;
}
return getModelAndView(mavContainer, modelFactory, webRequest);
}
finally {
webRequest.requestCompleted();
}
}
com.lql.controller.HelloController#handle02(String, String, String)
SpringMVC确定POJO值的三步：
1、先看隐含模型中有没有这个key（标了ModelAttribute注解就是注解指定的value，没标就是参数类型的首字母小写）指定的值；如果有将这个值赋值给bindObject。
2、如果是SessionAttribute标注的属性，就从session中拿；
3、如果都不是就利用反射创建对象（null）；
总结两件事：
1、运行流程简单版
2、确定方法每个参数的值
—–》过时
1）、标注解：
保存注解的信息，最终得到这个注解应该对应解析的值；
2）、没标注解：
-
看是否是原生API;
-
看是否是Model或者Map，xxx；
-
都不是，看是否是简单类型；paramName；
-
给attrName赋值；attrName（参数标了@ModelAttribute("")就是指定的，没标就是""）
==确定自定义类型参数==：
1）attrName使用参数的类型首字母小写；或者使用之前
@ModelAttribute("")的值2）先看隐含模型中有没有这个attrName作为key对应的值；如果有就从隐含模型中获取并赋值；
3）看是否是
@SessionAttributes(value="")标注的属性，如果是从session中拿，如果拿不到就会抛异常；4）不是**@SessionAttributes**标注的，利用反射创建一个对象；
-

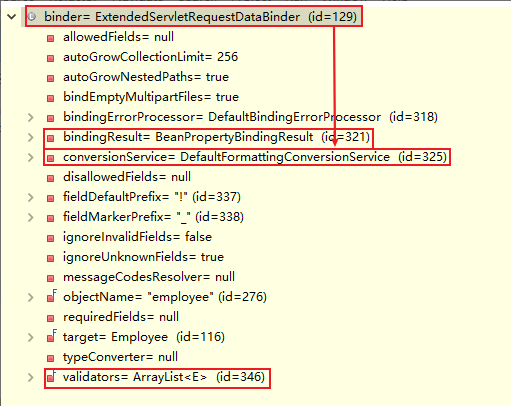

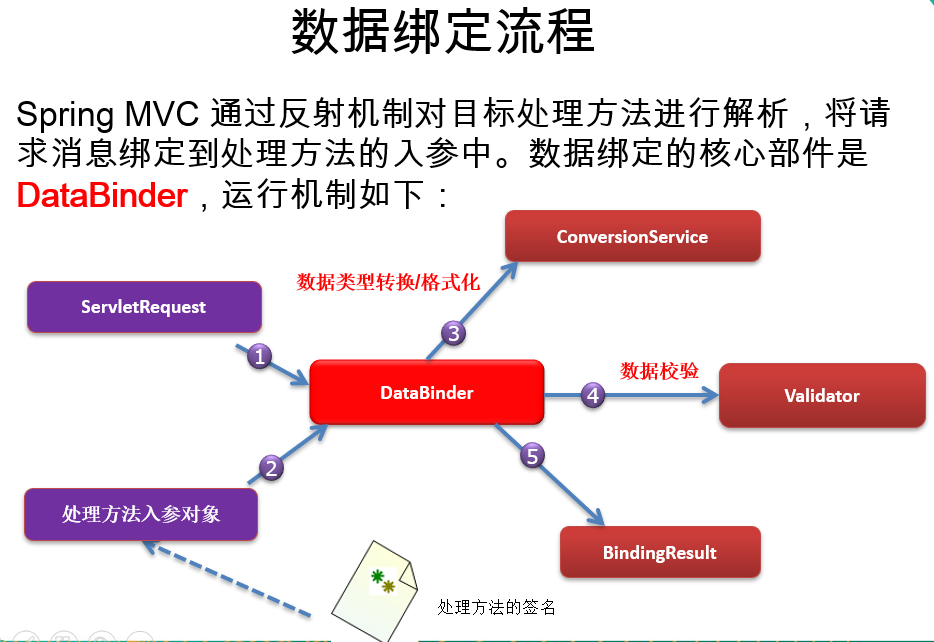

拿到之前创建好的对象，使用数据绑定器（WebDataBinder）将请求中的每个数据绑定到这个对象中；
—–》现在

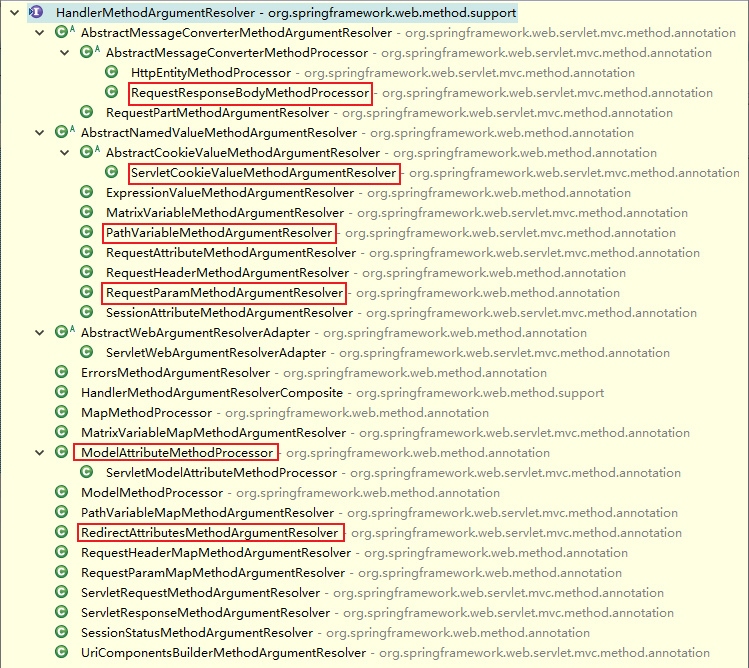

- 用解析器
6.@SessionAttributes(value="haha")
==最好不要使用==（为了避免可能引发的异常）
使用保证两点：
- 要么隐含模型中有**@SessionAttributes**标注的属性
- 如果隐含模型中有，session还说有就一定要有，否则抛异常
七、视图解析
1、方法执行后的返回值会作为页面地址参考，转发或者重定向到页面
2、视图解析器可能会进行页面地址的拼串
1、源码
1.ModelAndView
- 任何方法的返回值，最终都会被包装成ModelAndView对象
2.来到页面的方法
processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
- 视图渲染流程：将域中的数据在页面展示；页面就是用来渲染模型数据的。
3.渲染页面
- 调用
render(mv, request, response);渲染页面。

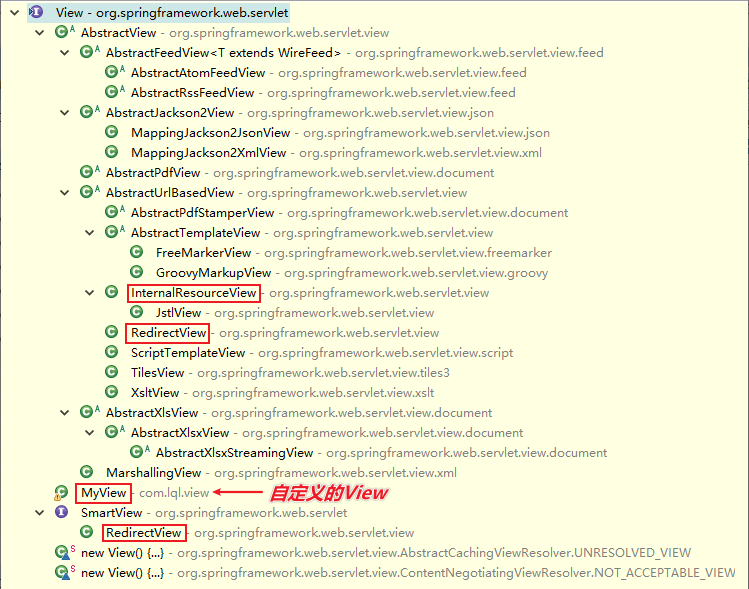

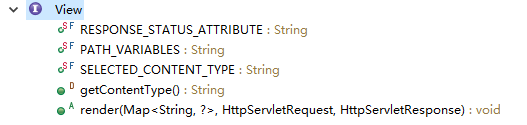

4.View与ViewResolver
- ViewResolver的作用是根据视图名（方法的返回值）得到View对象：

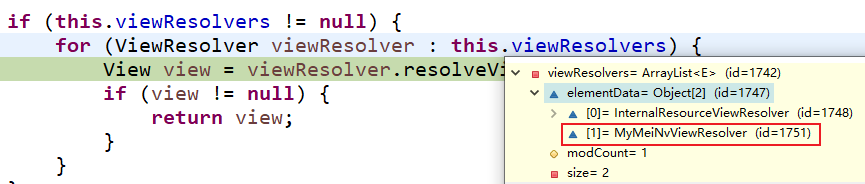

5.怎么能根据方法的返回值（视图名）得到View对象？
@Nullable
protected View resolveViewName(String viewName, @Nullable Map<String, Object> model,
Locale locale, HttpServletRequest request) throws Exception {
if (this.viewResolvers != null) {
//遍历所有的ViewResolver
for (ViewResolver viewResolver : this.viewResolvers) {
//viewResolver视图解析器，根据方法的返回值得到View对象
View view = viewResolver.resolveViewName(viewName, locale);
if (view != null) {
return view;
}
}
}
return null;
}
6.resolveViewName实现：
@Override
@Nullable
public View resolveViewName(String viewName, Locale locale) throws Exception {
if (!isCache()) {
return createView(viewName, locale);
}
else {
Object cacheKey = getCacheKey(viewName, locale);
View view = this.viewAccessCache.get(cacheKey);
if (view == null) {
synchronized (this.viewCreationCache) {
view = this.viewCreationCache.get(cacheKey);
if (view == null) {
// Ask the subclass to create the View object.
//根据方法的返回值创建出视图view对象
view = createView(viewName, locale);
if (view == null && this.cacheUnresolved) {
view = UNRESOLVED_VIEW;
}
if (view != null && this.cacheFilter.filter(view, viewName, locale)) {
this.viewAccessCache.put(cacheKey, view);
this.viewCreationCache.put(cacheKey, view);
}
}
}
}
else {
if (logger.isTraceEnabled()) {
logger.trace(formatKey(cacheKey) + "served from cache");
}
}
return (view != UNRESOLVED_VIEW ? view : null);
}
}

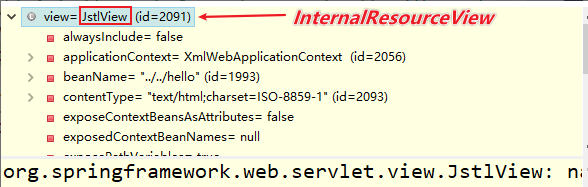

7.创建view对象
@Override
protected View createView(String viewName, Locale locale) throws Exception {
// If this resolver is not supposed to handle the given view,
// return null to pass on to the next resolver in the chain.
if (!canHandle(viewName, locale)) {
return null;
}
// Check for special "redirect:" prefix.
if (viewName.startsWith(REDIRECT_URL_PREFIX)) {
String redirectUrl = viewName.substring(REDIRECT_URL_PREFIX.length());
RedirectView view = new RedirectView(redirectUrl,
isRedirectContextRelative(), isRedirectHttp10Compatible());
String[] hosts = getRedirectHosts();
if (hosts != null) {
view.setHosts(hosts);
}
return applyLifecycleMethods(REDIRECT_URL_PREFIX, view);
}
// Check for special "forward:" prefix.
if (viewName.startsWith(FORWARD_URL_PREFIX)) {
String forwardUrl = viewName.substring(FORWARD_URL_PREFIX.length());
InternalResourceView view = new InternalResourceView(forwardUrl);
return applyLifecycleMethods(FORWARD_URL_PREFIX, view);
}
// Else fall back to superclass implementation: calling loadView.
//如果没有前缀就使用父类默认创建一个View；
return super.createView(viewName, locale);
}
项目中使用JSTL（导包或配置），SpringMVC会把视图由InternalView转换为JstlView。
8.视图接口
9.返回View对象
1）、视图解析器得到View对象的流程
- 所有配置的视图解析器都来尝试根据视图名（返回值）得到View对象；如果能得到就返回，得不到就换下一个视图解析器
2）、View对象的render方法
@Override
public void render(@Nullable Map<String, ?> model, HttpServletRequest request,
HttpServletResponse response) throws Exception {
if (logger.isDebugEnabled()) {
logger.debug("View " + formatViewName() +
", model " + (model != null ? model : Collections.emptyMap()) +
(this.staticAttributes.isEmpty() ? "" : ", static attributes " + this.staticAttributes));
}
Map<String, Object> mergedModel = createMergedOutputModel(model, request, response);
prepareResponse(request, response);
//渲染要给页面输出的所有数据
renderMergedOutputModel(mergedModel, getRequestToExpose(request), response);
}
3）、renderMergedOutputModel
- InternalResourceView有这个方法renderMergedOutputModel：
@Override
protected void renderMergedOutputModel(
Map<String, Object> model, HttpServletRequest request, HttpServletResponse response) throws Exception {
// Expose the model object as request attributes.
//将模型中的数据放在请求域中
exposeModelAsRequestAttributes(model, request);
// Expose helpers as request attributes, if any.
exposeHelpers(request);
// Determine the path for the request dispatcher.
String dispatcherPath = prepareForRendering(request, response);
// Obtain a RequestDispatcher for the target resource (typically a JSP).
RequestDispatcher rd = getRequestDispatcher(request, dispatcherPath);
if (rd == null) {
throw new ServletException("Could not get RequestDispatcher for [" + getUrl() +
"]: Check that the corresponding file exists within your web application archive!");
}
// If already included or response already committed, perform include, else forward.
if (useInclude(request, response)) {
response.setContentType(getContentType());
if (logger.isDebugEnabled()) {
logger.debug("Including [" + getUrl() + "]");
}
rd.include(request, response);
}
else {
// Note: The forwarded resource is supposed to determine the content type itself.
if (logger.isDebugEnabled()) {
logger.debug("Forwarding to [" + getUrl() + "]");
}
rd.forward(request, response);
}
}
4）、将模型中的所有数据取出来全放在request域中
protected void exposeModelAsRequestAttributes(Map<String, Object> model,
HttpServletRequest request) throws Exception {
model.forEach((name, value) -> {
if (value != null) {
request.setAttribute(name, value);
}
else {
request.removeAttribute(name);
}
});
}
2、总结：
- 视图解析器只是为了得到视图对象；视图对象才能真正的==转发（将模型数据全部放在请求域中）或者重定向到页面==，视图对象才能真正的==渲染视图==
1.ViewResolver接口
2.视图
- 视图的作用是渲染模型数据，将模型里的数据以某种形式呈现给用户，视图对象由视图解析器负责实例化；由于视图是无状态的，所以他们不会有线程安全的问题。
3、国际化
- 导包导入了jstl的时候会自动创建为一个jstlView，可以快速方便的支持国际化功能
1.javaWeb国际化步骤
-
得得到一个Locale对象
-
使用ResourceBundle绑定国际化资源文件
-
使用
ResourceBundle.getstring("key");获取到国际化配置文件中的值 -
web页面的国际化，fmt标签库来做：
<fmt:setLocale> <fmt:setBundle> <fmt:message>
2.Jstlview
-
让Spring管理国际化资源
<!-- 让SpringMVC管理国际化资源文件：配置一个资源文件管理器 --> <bean id="messageSource" class="org.springframework.context.support.ResourceBundleMessageSource"> <!-- basename-指定基础名 --> <property name="basename" value="i18n"></property> </bean> -
直接去页面使用
<fmt:message>
<h1>
<fmt:message key="welcomeinfo"/>
</h1>
<form action="">
<fmt:message key="username"/>：<input/><br>
<fmt:message key="password"/>：<input/><br>
<input type="submit" value="<fmt:message key="loginBtn"/>"/>
</form>
3.注意
- 一定要过SpringMVC的视图解析流程，人家会创建一个jstlView帮你快速国际化
- 也不能写forward（转发），（会执行
InternalResourceView view = new InternalResourceView(forwardUrl);创建view对象）
4.扩展
- 视图解析器根据方法的返回值得到视图对象
- 多个视图解析器都会尝试能否得到视图对象
- 视图对象不同就可以具有不同功能
for (ViewResolver viewResolver : this.viewResolvers) { //viewResolver视图解析器，根据方法的返回值得到View对象 View view = viewResolver.resolveViewName(viewName, locale); if (view != null) { return view; } }
5.自定义视图和视图解析器
- 让我们的视图解析器工作
- 得到我们的视图对象
- 我们的视图对象自定义渲染逻辑
response.getWriter().write("哈哈<h1>即将展现精彩内容<h1>");
步骤
- 编写自定义的视图解析器和视图实现类
- 视图解析器必须放在ioc容器中
4、总体架构：
5、web.xml(同上)
6、springDispatcherServlet-servlet.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
<context:component-scan base-package="com.lql"></context:component-scan>
<!-- 可以导入JSTL包；fmt:message
InternalResourceViewResolver：优先级是最低的-->
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/pages/"></property>
<property name="suffix" value=".jsp"></property>
<!-- <property name="viewClass" value="org.springframework.web.servlet.view.JstlView"></property> -->
</bean>
<!-- 自定义的视图解析器 value="1"数字越小优先级越高 -->
<bean class="com.lql.view.MyMeiNvViewResolver">
<property name="order" value="1"></property>
</bean>
<!-- 让SpringMVC管理国际化资源文件：配置一个资源文件管理器;id是必须叫messageSource -->
<bean id="messageSource" class="org.springframework.context.support.ResourceBundleMessageSource">
<!-- basename-指定基础名 -->
<property name="basename" value="i18n"></property>
</bean>
<!-- 发送一个请求(toLoginPage)：直接来到web-inf下的login页面；mvc名称空间下有一个请求映射标签 -->
<!-- path=""：指定哪个请求
view-name：指定映射给哪个视图
走了SpringMVC的整个流程，视图解析等等。。帮忙国际化。
其他的请求就不好使了？
-->
<mvc:view-controller path="/toLoginPage" view-name="login"/>
<!-- 开启mvc注解驱动模式：开启了mvc的开挂模式 -->
<mvc:annotation-driven></mvc:annotation-driven>
</beans>
7、jsp
#############index.jsp#######################################
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
<a href="hello">hello</a>
<a href="handle01">handle01-来到hello页面</a>
<a href="handle03">handle03-重定向到hello.jsp页面</a>
<a href="toLoginPage">去登录页面</a><br><br>
<a href="handleplus">下载美女资源--你就会看见各种高清-无码图</a>
</body>
</html>
#############login.jsp#######################################
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@ taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
<h1>
<fmt:message key="welcomeinfo"/>
</h1>
<form action="">
<fmt:message key="username"/>：<input/><br>
<fmt:message key="password"/>：<input/><br>
<input type="submit" value="<fmt:message key="loginBtn"/>"/>
</form>
</body>
</html>
8、conf(国际化properties)
###########i18n_en_US.properties#################
welcomeinfo=WELCOME TO CODEWORLD
username=USERNAME
password=PASSWORD
loginBtn=LOGIN
################i18n_en_US.properties################
welcomeinfo=\u6B22\u8FCE\u6765\u5230\u4EE3\u7801\u4E16\u754C
username=\u7528\u6237\u540D
password=\u5BC6\u7801
loginBtn=\u767B\u5F55
9、view(自定义视图)
package com.lql.view;
import java.util.Locale;
import org.springframework.core.Ordered;
import org.springframework.web.servlet.View;
import org.springframework.web.servlet.ViewResolver;
public class MyMeiNvViewResolver implements ViewResolver,Ordered{
private Integer order = 0;
@Override
public View resolveViewName(String viewName, Locale locale) throws Exception {
// TODO Auto-generated method stub
//根据视图名返回视图对象
//meinv:/gaoqing meinv:/dama
//forward:/login.jsp
if(viewName.startsWith("meinv:")){
return new MyView();
}else{
//如果不能处理返回null即可
return null;
}
}
@Override
public int getOrder() {
// TODO Auto-generated method stub
return order;
}
//改变视图解析器的优先级
public void setOrder(Integer order){
this.order = order;
}
}
**************************************************************
package com.lql.view;
import java.io.PrintWriter;
import java.util.List;
import java.util.Map;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.springframework.stereotype.Controller;
import org.springframework.web.servlet.View;
/**
* 返回的数据的内容类型
* @author 陆乾龙
*
*/
@Controller
public class MyView implements View{
@Override
public void render(Map<String, ?> model, HttpServletRequest request, HttpServletResponse response)
throws Exception {
// TODO Auto-generated method stub
System.out.println("之前保存的数据："+model);
response.setContentType("text/html");
List<String> vn = (List<String>) model.get("video");
response.getWriter().write("哈哈<h1>即将展现精彩内容<h1>");
for(String string : vn){
response.getWriter().write("<a>下载"+string+".avi</a><br/>");
}
int num = vn.toString().length()-7;
//request.setAttribute("msg", num);
response.getWriter().write(""
+ "<script language='javascript'>"
+ "var aEle = document.getElementsByTagName('a');"
+ "var n=2;"
+ "alert(n);"
+ "for(let i=0;i<n;i++){"
+ "aEle[i].onclick=function(){"
+ "alert('想下载吗？交学费');"
+ "}}"
+ "</script>");
}
}
10、Controller类
package com.lql.controller;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
@Controller
public class HelloController {
@RequestMapping("/hello")
public String hello(){
// /WEB-INF/pages/hello.jsp /hello.jsp
//相对路径
return "../../hello";
}
/**
* forward:转发到一个页面
* /hello.jsp：转发当前项目下的hello；
*
* 一定加上/，如果不加/就是相对路径，容易出问题；
* forward:/hello.jsp
* forward:前缀的转发，不会由我们配置的视图解析器拼串
* @return
*/
@RequestMapping("/handle01")
public String handle01(){
System.out.println("handle01");
return "forward:/hello.jsp";
}
@RequestMapping("/handle02")
public String handle02(){
System.out.println("handle02");
return "forward:/handle01";
}
/**
* 重定向到hello.jsp页面
* 有前缀的转发和重定向操作，配置的视图解析器就不会进行拼串；
*
* 转发 forward：转发的路径
* 重定向 redirect：重定向的路径
* /hello.jsp:代表就是从当前项目下开始：SpringMVC会为路径自动的拼接上项目名
* 原生的Servlet重定向/路径需要加上项目名才能成功
* response.sendRedirect("/hello.jsp")
* @return
*/
@RequestMapping("/handle03")
public String handle03(){
System.out.println("handle03....");
return "redirect:hello.jsp";
}
@RequestMapping("/handle04")
public String handle04(){
System.out.println("handle04....");
return "redirect:handle03";
}
/*@RequestMapping("/toLoginPage")
public String toLogin(){
return "login";
}*/
}
***************************************************************
package com.lql.controller;
import java.util.ArrayList;
import java.util.List;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
/**
* 自定义视图解析器和视图对象
* @author 陆乾龙
*
*/
@Controller
public class MyViewResolverController {
@RequestMapping("/handleplus")
public String handleplus(Model model){
//meinv:/gaoqing meinv:/dama
//forward:/login.jsp
List<String> vname = new ArrayList<String>();
List<String> imgname = new ArrayList<String>();
vname.add("佟老师");
vname.add("飞哥");
imgname.add("萌萌");
model.addAttribute("video", vname);
model.addAttribute("imgs", imgname);
return "meinv:/gaoqing";
}
}
八、SpringMVC-RestfulCRUD
1、需求
利用SpringMVC做一个CRUD（增删改查）符合Rest风格的；
C：Creat：创建
R：Retrieve：查询
U：Update：更新
D：Delete：删除
==使用Map，List代替数据库保存数据==
1.员工列表
2.员工添加
3.员工修改
4.员工删除-点击完成删除来到列表页面
增删改查的URL地址 /资源名/资源标识
| /资源名/资源标识 | 请求 | 解释 |
|---|---|---|
| /emp/1 | GET | 查询id为1的员工 |
| /emp/1 | PUT | 更新id为1的员工 |
| /emp/1 | DELETE | 删除id为1的员工 |
| /emp | POST | 新增员工 |
| /emps | GET | 查询所有员工 |
2、逻辑
-
员工列表展示：访问index.jsp–直接发送/emps–控制器查询所有员工–放在请求域中–转发到list页面展示
-
员工添加：
- 在list页面点击“员工添加”—-（查询出所有部门信息要展示在页面）—–来到添加页面（add.jsp）—-输入员工数据—-点击保存（/emp）—-处理器收到员工保存请求（保存员工）—-保存完成以后还是来到列表页面
- 通过 SpringMVC 的表单标签可以实现将模型数据中的属性和 HTML 表单元素相绑定，以实现表单数据更便捷编辑和表单值的回显
====用了表单标签的页面可能会报错（请求域中没有一个command**类型的对象）
解决（具体看后面源码）：
3、总体架构：
4、web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd" id="WebApp_ID" version="3.1">
<display-name>7.SpringMVC_crud</display-name>
<welcome-file-list>
<welcome-file>index.html</welcome-file>
<welcome-file>index.htm</welcome-file>
<welcome-file>index.jsp</welcome-file>
<welcome-file>default.html</welcome-file>
<welcome-file>default.htm</welcome-file>
<welcome-file>default.jsp</welcome-file>
</welcome-file-list>
<!-- The front controller of this Spring Web application, responsible for handling all application requests -->
<servlet>
<servlet-name>springDispatcherServlet</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:springmvc.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
<!-- Map all requests to the DispatcherServlet for handling -->
<servlet-mapping>
<servlet-name>springDispatcherServlet</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!-- 字符编码Filter -->
<filter>
<filter-name>CharacterEncodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
<init-param>
<param-name>forceRequestEncoding</param-name>
<param-value>true</param-value>
</init-param>
<init-param>
<param-name>forceResponseEncoding</param-name>
<param-value>true</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>CharacterEncodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!-- 支持Rest风格转换的Filter -->
<filter>
<filter-name>HiddenHttpMethodFilter</filter-name>
<filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>HiddenHttpMethodFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>
5、springmvc.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
<context:component-scan base-package="com.lql"></context:component-scan>
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/pages/"></property>
<property name="suffix" value=".jsp"></property>
</bean>
<!-- 默认前端控制器是拦截所有资源（除过jsp），js文件就404了；要js文件的请求是交给tomcat处理的
http://localhost:8080/7.SpringMVC_crud/scripts/jquery-1.9.1.min.js -->
<!-- 告诉SpringMVC，自己映射的请求就自己处理，不能处理的请求直接交给tomcat -->
<!-- 静态资源能访问，动态映射的请求就不行 -->
<mvc:default-servlet-handler/>
<!-- SprigMVC可以保证动态请求和静态请求都能访问 -->
<mvc:annotation-driven></mvc:annotation-driven>
</beans>
6、jsp页面
****************index.jsp*************************************
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!-- 访问项目就要展示员工列表页面 -->
<jsp:forward page="/emps"></jsp:forward>
****************list.jsp*************************************
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<%
pageContext.setAttribute("ctp", request.getContextPath());
%>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>员工列表页面</title>
</head>
<body>
<h1>员工列表</h1>
<script type="text/javascript" src="${ctp }/scripts/jquery-1.9.1.min.js"></script>
<table border="1" cellpadding="5" cellspacing="0">
<tr>
<th>ID</th>
<th>LastName</th>
<th>Email</th>
<th>Gender</th>
<th>Department</th>
<th>EDIT</th>
<th>DELETE</th>
</tr>
<c:forEach items="${emps }" var="emp">
<tr>
<td>${emp.id}</td>
<td>${emp.lastName}</td>
<td>${emp.email}</td>
<td>${emp.gender==0?"女":"男"}</td>
<td>${emp.department.departmentName}</td>
<td>
<a href="${ctp }/emp/${emp.id}">edit</a>
</td>
<td>
<a href="${ctp }/emp/${emp.id}" class="delBtn">delete</a>
</td>
</tr>
</c:forEach>
<a href="${ctp }/toaddpage">添加员工</a>
</table>
<form action="${ctp }/emp/${emp.id}" method="post" id="deleteForm">
<input type="hidden" name="_method" value="DELETE"/>
</form>
<script type="text/javascript">
$(function(){
$(".delBtn").click(function(){
//0、确认删除？
if(confirm("确认要删除吗？")){
//1、改变表单的action指向
$("#deleteForm").attr("action",this.href);
//2、提交表单
$("#deleteForm").submit();
return false;}else{
return false;
}
});
});
</script>
</body>
</html>
****************add.jsp*************************************
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@taglib prefix="form" uri="http://www.springframework.org/tags/form" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
<h1>员工添加</h1>
<!-- 表单标签：
通过 SpringMVC 的表单标签可以实现将模型数据中的属性和 HTML 表单元素相绑定，
以实现表单数据更便捷编辑和表单值的回显
1)、SpringMVC认为，表单数据中的每一项最终都是要回显的；
path指定的是一个属性，这个属性是从隐含模型（请求域中取出的某个对象中的属性）
path指定的每一个属性，请求域中必须有一个对象拥有这个属性；
这个对象就是请求域中的command；
modelAttribute=""：
1）、以前我们表单标签会从请求域中获取一个command对象；把这个对象中的每一个属性对应的显示出来
2）、可以告诉SpringMVC不要去取command的值了，我放了一个modelAttribute指定的值，
取对象用的key就用我modelAttribute指定的；
-->
<%
pageContext.setAttribute("ctp", request.getContextPath());
%>
<form:form action="${ctp }/emp" modelAttribute="employee" method="POST">
<!-- path就是原来html-input的name项；需要写
path：
1）、当作原生的name项
2）、自动回显隐含模型中某个对象对应的这个属性的值
-->
lastName:<form:input path="lastName"/><br>
eamil:<form:input path="email"/><br>
gender:<br>
男：<form:radiobutton path="gender" value="1"/><br>
女：<form:radiobutton path="gender" value="0"/><br>
dept:
<!-- items=""：指定要遍历的集合，自动遍历；遍历出的每一个元素是一个department对象
itemLabel="属性名"：指定遍历出的这个对象的哪个属性是作为option标签体的值
itemValue="属性名"：指定刚才遍历出来的这个对象的哪个属性是作为要提交的value值
-->
<form:select path="department.id"
items="${depts}"
itemLabel="departmentName"
itemValue="id"></form:select><br>
<input type="submit" value="保存"/>
</form:form>
<!-- (Employee) -->
<%-- <form action="">
lastName：<input type="text" name="lastName"/><br>
email：<input type="text" name="email"/><br>
gender：<br>
男：<input type="radio" name="gender" value="1"/><br>
女：<input type="radio" name="gender" value="0"/><br>
dept：
<select name="department.id">
<c:forEach items="${depts }" var="deptItem">
<!-- 标签中的是在页面 的提示选项信息，value才是真正提交的值-->
<option value="${deptItem.id}">${deptItem.departmentName}</option>
</c:forEach>
</select>
<input type="submit" value="提交"/>
</form> --%>
</body>
</html>
****************edit.jsp*************************************
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@taglib prefix="form" uri="http://www.springframework.org/tags/form" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
<%
pageContext.setAttribute("ctp", request.getContextPath());
%>
</head>
<body>
<h1>员工修改页面</h1>
<!-- modelAttribute：这个表单的所有内容显示绑定的是绑定的是请求域中employee的值 -->
<form:form action="${ctp }/emp/${employee.id }"
modelAttribute="employee" method="post">
<input type="hidden" name="_method" value="put"/>
<input type="hidden" name="id" value="${employee.id }"/>
email:<form:input path="email"/><br>
gender:
男:<form:radiobutton path="gender" value="1"/>
女:<form:radiobutton path="gender" value="0"/><br>
dept:<form:select path="department.id" items="${depts }"
itemLabel="departmentName" itemValue="id"></form:select>
<input type="submit" value="修改" />
</form:form>
</body>
</html>
7、bean
package com.lql.bean;
public class Department {
private Integer id;
private String departmentName;
public Department() {
}
public Department(int i, String string) {
this.id = i;
this.departmentName = string;
}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getDepartmentName() {
return departmentName;
}
public void setDepartmentName(String departmentName) {
this.departmentName = departmentName;
}
@Override
public String toString() {
return "Department [id=" + id + ", departmentName=" + departmentName + "]";
}
}
**************************************************************
package com.lql.bean;
import java.util.Date;
public class Employee {
private Integer id;
private String lastName;
private String email;
//1 male, 0 female
private Integer gender;
private Department department;
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getLastName() {
return lastName;
}
public void setLastName(String lastName) {
this.lastName = lastName;
}
public String getEmail() {
return email;
}
public void setEmail(String email) {
this.email = email;
}
public Integer getGender() {
return gender;
}
public void setGender(Integer gender) {
this.gender = gender;
}
public Department getDepartment() {
return department;
}
public void setDepartment(Department department) {
this.department = department;
}
public Employee(Integer id, String lastName, String email, Integer gender,
Department department) {
super();
this.id = id;
this.lastName = lastName;
this.email = email;
this.gender = gender;
this.department = department;
}
public Employee() {
}
@Override
public String toString() {
return "Employee [id=" + id + ", lastName=" + lastName + ", email="
+ email + ", gender=" + gender + ", department=" + department
+ "]";
}
}
8、dao
package com.lql.dao;
import java.util.Collection;
import java.util.HashMap;
import java.util.Map;
import org.springframework.stereotype.Repository;
import com.lql.bean.Department;
/**
* 操作部门的dao
* @author 陆乾龙
*
*/
@Repository
public class DepartmentDao {
private static Map<Integer, Department> departments = null;
static{
departments = new HashMap<Integer, Department>();
departments.put(101, new Department(101, "D-AA"));
departments.put(102, new Department(102, "D-BB"));
departments.put(103, new Department(103, "D-CC"));
departments.put(104, new Department(104, "D-DD"));
departments.put(105, new Department(105, "D-EE"));
}
/**
* 返回所有的部门
* @return
*/
public Collection<Department> getDepartments(){
return departments.values();
}
/**
* 按照部门id查询部门
* @param id
* @return
*/
public Department getDepartment(Integer id){
return departments.get(id);
}
}
**************************************************************
package com.lql.dao;
import java.util.Collection;
import java.util.HashMap;
import java.util.Map;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Repository;
import com.lql.bean.Department;
import com.lql.bean.Employee;
/**
* EmployeeDao：操作员工
* @author 陆乾龙
*
*/
@Repository
public class EmployeeDao {
private static Map<Integer, Employee> employees = null;
@Autowired
private DepartmentDao departmentDao;
static{
employees = new HashMap<Integer, Employee>();
employees.put(1001, new Employee(1001, "E-AA", "aa@163.com", 1, new Department(101, "D-AA")));
employees.put(1002, new Employee(1002, "E-BB", "bb@163.com", 1, new Department(102, "D-BB")));
employees.put(1003, new Employee(1003, "E-CC", "cc@163.com", 0, new Department(103, "D-CC")));
employees.put(1004, new Employee(1004, "E-DD", "dd@163.com", 0, new Department(104, "D-DD")));
employees.put(1005, new Employee(1005, "E-EE", "ee@163.com", 1, new Department(105, "D-EE")));
}
//初始id
private static Integer initId = 1006;
/**
* 员工保存/更新二合一方法；
* @param employee
*/
public void save(Employee employee){
if(employee.getId() == null){
employee.setId(initId++);
}
//根据部门id单独查出部门信息设置到员工对象中，页面提交时只需要提交部门的id
employee.setDepartment(departmentDao.getDepartment(employee.getDepartment().getId()));
employees.put(employee.getId(), employee);
}
/**
* 查询所有员工
* @return
*/
public Collection<Employee> getAll(){
return employees.values();
}
/**
* 按照id查询某个员工
* @param id
* @return
*/
public Employee get(Integer id){
return employees.get(id);
}
/**
* 删除某个员工
* @param id
*/
public void delete(Integer id){
employees.remove(id);
}
}
9、Controller
package com.lql.controller;
import java.util.Collection;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
import com.lql.bean.Department;
import com.lql.bean.Employee;
import com.lql.dao.DepartmentDao;
import com.lql.dao.EmployeeDao;
@Controller
public class EmployeeController {
@Autowired
EmployeeDao employeeDao;
@Autowired
DepartmentDao departmentDao;
/**
* 查询所有员工
*/
@RequestMapping("/emps")
public String getEmps(Model model){
Collection<Employee> all = employeeDao.getAll();
model.addAttribute("emps", all);
return "list";
}
@RequestMapping(value="/emp/{id}",method=RequestMethod.DELETE)
public String deleteEmp(@PathVariable("id")Integer id) {
employeeDao.delete(id);
return "redirect:/emps";
}
/**
* 查询员工，来到修改页面回显
* @param id
* @param model
* @return
*/
@RequestMapping(value="/emp/{id}",method=RequestMethod.GET)
public String getEmp(@PathVariable("id")Integer id,Model model) {
//1、查出员工信息
Employee employee = employeeDao.get(id);
//2、放在请求域中
model.addAttribute("employee",employee);
//3、继续查出部门信息放在隐含模型中
Collection<Department> departments = departmentDao.getDepartments();
model.addAttribute("depts", departments);
return "edit";
}
//@ModelAttribute("employee")
@RequestMapping(value="/emp/{id}",method=RequestMethod.PUT)
public String updateEmp(Employee employee/*,@PathVariable("id")Integer id*/){
System.out.println("要修改的员工："+employee);
// xxxx更新修改二合一
//employeeDao.save(employee);
return "redirect:/emps";
}
@ModelAttribute
public void myModelAttribute(
@RequestParam(value = "id",required = false)Integer id,Model model){
if(id != null){
Employee employee = employeeDao.get(id);
model.addAttribute("employee", employee);
}
System.out.println("hahaha");
}
/**
* 保存员工
* @param employee
* @return
*/
@RequestMapping(value="/emp",method=RequestMethod.POST)
public String addEmp(Employee employee) {
System.out.println("要添加的员工："+employee);
employeeDao.save(employee);
//返回列表页面;重定向到查询所有员工的请求
return "redirect:/emps";
}
/**
* 去员工添加页面，去页面之前需要查出所有部门信息，进行展示的
* @return
*/
@RequestMapping("/toaddpage")
public String toAddPage(Model model) {
//1、先查出所有部门
Collection<Department> departments = departmentDao.getDepartments();
//2、放在请求域中
model.addAttribute("depts",departments);
//model.addAttribute("command",new Employee(null, "张三", "haha@gmail.com", 0, departmentDao.getDepartment(102)));
model.addAttribute("employee", new Employee());
//3、去添加页面
return "add";
}
}
九、数据转换 & 数据格式化 & 数据校验
-
SpringMVC封装自定义类型对象，javaBean要和页面提交的数据进行一一绑定
-
页面提交的所有数据都是字符串
-
Integer age，Date birth，
-
employName=zhangsan&age=18&gender=1
-
String age=request.getParameter("age");
-
-
数据绑定期间牵扯到以下操作：
- 数据类型转化
- String–Integer，String–Boolean，xxx
- 数据格式化
- birth=2020-12-02 –>Date 2020/12/02 2020.12.02
- 数据校验
- 我们提交的数据必须是合法的
- 前端校验：js+正则表达式（浏览器能禁用js，防君子不防小人）
- 后端校验：重要数据也是必须的
- 校验成功—->数据合法
- 校验失败
- 我们提交的数据必须是合法的
1、新的源码
ModelAttributeMethodProcessor
@Override
@Nullable
public final Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
NativeWebRequest webRequest, @Nullable WebDataBinderFactory binderFactory) throws Exception {
Assert.state(mavContainer != null, "ModelAttributeMethodProcessor requires ModelAndViewContainer");
Assert.state(binderFactory != null, "ModelAttributeMethodProcessor requires WebDataBinderFactory");
String name = ModelFactory.getNameForParameter(parameter);
ModelAttribute ann = parameter.getParameterAnnotation(ModelAttribute.class);
if (ann != null) {
mavContainer.setBinding(name, ann.binding());
}
Object attribute = null;
BindingResult bindingResult = null;
if (mavContainer.containsAttribute(name)) {
attribute = mavContainer.getModel().get(name);
}
else {
// Create attribute instance
try {
attribute = createAttribute(name, parameter, binderFactory, webRequest);
}
catch (BindException ex) {
if (isBindExceptionRequired(parameter)) {
// No BindingResult parameter -> fail with BindException
throw ex;
}
// Otherwise, expose null/empty value and associated BindingResult
if (parameter.getParameterType() == Optional.class) {
attribute = Optional.empty();
}
bindingResult = ex.getBindingResult();
}
}
if (bindingResult == null) {
// Bean property binding and validation;
// skipped in case of binding failure on construction.
WebDataBinder binder = binderFactory.createBinder(webRequest, attribute, name);
if (binder.getTarget() != null) {
if (!mavContainer.isBindingDisabled(name)) {
//将页面提交过来的数据封装到javaBean的属性中
bindRequestParameters(binder, webRequest);
}
validateIfApplicable(binder, parameter);
if (binder.getBindingResult().hasErrors() && isBindExceptionRequired(binder, parameter)) {
throw new BindException(binder.getBindingResult());
}
}
// Value type adaptation, also covering java.util.Optional
if (!parameter.getParameterType().isInstance(attribute)) {
attribute = binder.convertIfNecessary(binder.getTarget(), parameter.getParameterType(), parameter);
}
bindingResult = binder.getBindingResult();
}
2、WebDataBinder（数据绑定器）
- 负责数据绑定工作
- 数据绑定期间产生的类型转换、格式化、数据校验等问题
1.ConversionService组件
- 负责数据类型的转换以及格式化功能
- ConversionService（接口）中有非常多的converter（转换器）
- 不同类型的转换和格式化用它自己的==converter==进行工作
ConversionService converters =
@org.springframework.format.annotation.DateTimeFormat java.lang.Long -> java.lang.String: org.springframework.format.datetime.DateTimeFormatAnnotationFormatterFactory@2d79adce,@org.springframework.format.annotation.NumberFormat java.lang.Long -> java.lang.String: org.springframework.format.number.NumberFormatAnnotationFormatterFactory@4aa56e0e
@org.springframework.format.annotation.DateTimeFormat java.time.LocalDate -> java.lang.String: org.springframework.format.datetime.standard.Jsr310DateTimeFormatAnnotationFormatterFactory@1f5a6f4a,java.time.LocalDate -> java.lang.String : org.springframework.format.datetime.standard.TemporalAccessorPrinter@4fab9160
@org.springframework.format.annotation.DateTimeFormat java.time.LocalDateTime -> java.lang.String: org.springframework.format.datetime.standard.Jsr310DateTimeFormatAnnotationFormatterFactory@1f5a6f4a,java.time.LocalDateTime -> java.lang.String : org.springframework.format.datetime.standard.TemporalAccessorPrinter@538ef1eb
@org.springframework.format.annotation.DateTimeFormat java.time.LocalTime -> java.lang.String: org.springframework.format.datetime.standard.Jsr310DateTimeFormatAnnotationFormatterFactory@1f5a6f4a,java.time.LocalTime -> java.lang.String : org.springframework.format.datetime.standard.TemporalAccessorPrinter@c5146f2
@org.springframework.format.annotation.DateTimeFormat java.time.OffsetDateTime -> java.lang.String: org.springframework.format.datetime.standard.Jsr310DateTimeFormatAnnotationFormatterFactory@1f5a6f4a,java.time.OffsetDateTime -> java.lang.String : org.springframework.format.datetime.standard.TemporalAccessorPrinter@528ad79
@org.springframework.format.annotation.DateTimeFormat java.time.OffsetTime -> java.lang.String: org.springframework.format.datetime.standard.Jsr310DateTimeFormatAnnotationFormatterFactory@1f5a6f4a,java.time.OffsetTime -> java.lang.String : org.springframework.format.datetime.standard.TemporalAccessorPrinter@647f303
@org.springframework.format.annotation.DateTimeFormat java.time.ZonedDateTime -> java.lang.String: org.springframework.format.datetime.standard.Jsr310DateTimeFormatAnnotationFormatterFactory@1f5a6f4a,java.time.ZonedDateTime -> java.lang.String : org.springframework.format.datetime.standard.TemporalAccessorPrinter@bda4d4c
@org.springframework.format.annotation.DateTimeFormat java.util.Calendar -> java.lang.String: org.springframework.format.datetime.DateTimeFormatAnnotationFormatterFactory@2d79adce
@org.springframework.format.annotation.DateTimeFormat java.util.Date -> java.lang.String: org.springframework.format.datetime.DateTimeFormatAnnotationFormatterFactory@2d79adce
@org.springframework.format.annotation.NumberFormat java.lang.Byte -> java.lang.String: org.springframework.format.number.NumberFormatAnnotationFormatterFactory@4aa56e0e
@org.springframework.format.annotation.NumberFormat java.lang.Double -> java.lang.String: org.springframework.format.number.NumberFormatAnnotationFormatterFactory@4aa56e0e
@org.springframework.format.annotation.NumberFormat java.lang.Float -> java.lang.String: org.springframework.format.number.NumberFormatAnnotationFormatterFactory@4aa56e0e
@org.springframework.format.annotation.NumberFormat java.lang.Integer -> java.lang.String: org.springframework.format.number.NumberFormatAnnotationFormatterFactory@4aa56e0e
@org.springframework.format.annotation.NumberFormat java.lang.Short -> java.lang.String: org.springframework.format.number.NumberFormatAnnotationFormatterFactory@4aa56e0e
@org.springframework.format.annotation.NumberFormat java.math.BigDecimal -> java.lang.String: org.springframework.format.number.NumberFormatAnnotationFormatterFactory@4aa56e0e
@org.springframework.format.annotation.NumberFormat java.math.BigInteger -> java.lang.String: org.springframework.format.number.NumberFormatAnnotationFormatterFactory@4aa56e0e
java.lang.Boolean -> java.lang.String : org.springframework.core.convert.support.ObjectToStringConverter@2007b2cb
java.lang.Character -> java.lang.Number : org.springframework.core.convert.support.CharacterToNumberFactory@77af216b
java.lang.Character -> java.lang.String : org.springframework.core.convert.support.ObjectToStringConverter@275d923b
java.lang.Enum -> java.lang.Integer : org.springframework.core.convert.support.EnumToIntegerConverter@20024e53
java.lang.Enum -> java.lang.String : org.springframework.core.convert.support.EnumToStringConverter@572a9f05
java.lang.Integer -> java.lang.Enum : org.springframework.core.convert.support.IntegerToEnumConverterFactory@3d8e32c3
java.lang.Long -> java.time.Instant : org.springframework.format.datetime.standard.DateTimeConverters$LongToInstantConverter@6a88519c
java.lang.Long -> java.util.Calendar : org.springframework.format.datetime.DateFormatterRegistrar$LongToCalendarConverter@184331e8,java.lang.Long -> java.util.Calendar : org.springframework.format.datetime.DateFormatterRegistrar$LongToCalendarConverter@5726b340
java.lang.Long -> java.util.Date : org.springframework.format.datetime.DateFormatterRegistrar$LongToDateConverter@20fac40c,java.lang.Long -> java.util.Date : org.springframework.format.datetime.DateFormatterRegistrar$LongToDateConverter@35ed78d5
java.lang.Number -> java.lang.Character : org.springframework.core.convert.support.NumberToCharacterConverter@5235697d
java.lang.Number -> java.lang.Number : org.springframework.core.convert.support.NumberToNumberConverterFactory@42238f9e
java.lang.Number -> java.lang.String : org.springframework.core.convert.support.ObjectToStringConverter@359205bd
java.lang.String -> @org.springframework.format.annotation.DateTimeFormat java.lang.Long: org.springframework.format.datetime.DateTimeFormatAnnotationFormatterFactory@2d79adce,java.lang.String -> @org.springframework.format.annotation.NumberFormat java.lang.Long: org.springframework.format.number.NumberFormatAnnotationFormatterFactory@4aa56e0e
java.lang.String -> @org.springframework.format.annotation.DateTimeFormat java.time.LocalDate: org.springframework.format.datetime.standard.Jsr310DateTimeFormatAnnotationFormatterFactory@1f5a6f4a,java.lang.String -> java.time.LocalDate: org.springframework.format.datetime.standard.TemporalAccessorParser@67872db8
java.lang.String -> @org.springframework.format.annotation.DateTimeFormat java.time.LocalDateTime: org.springframework.format.datetime.standard.Jsr310DateTimeFormatAnnotationFormatterFactory@1f5a6f4a,java.lang.String -> java.time.LocalDateTime: org.springframework.format.datetime.standard.TemporalAccessorParser@d3aeccf
java.lang.String -> @org.springframework.format.annotation.DateTimeFormat java.time.LocalTime: org.springframework.format.datetime.standard.Jsr310DateTimeFormatAnnotationFormatterFactory@1f5a6f4a,java.lang.String -> java.time.LocalTime: org.springframework.format.datetime.standard.TemporalAccessorParser@40bd580d
java.lang.String -> @org.springframework.format.annotation.DateTimeFormat java.time.OffsetDateTime: org.springframework.format.datetime.standard.Jsr310DateTimeFormatAnnotationFormatterFactory@1f5a6f4a,java.lang.String -> java.time.OffsetDateTime: org.springframework.format.datetime.standard.TemporalAccessorParser@5f2e7587
java.lang.String -> @org.springframework.format.annotation.DateTimeFormat java.time.OffsetTime: org.springframework.format.datetime.standard.Jsr310DateTimeFormatAnnotationFormatterFactory@1f5a6f4a,java.lang.String -> java.time.OffsetTime: org.springframework.format.datetime.standard.TemporalAccessorParser@4f8b2790
java.lang.String -> @org.springframework.format.annotation.DateTimeFormat java.time.ZonedDateTime: org.springframework.format.datetime.standard.Jsr310DateTimeFormatAnnotationFormatterFactory@1f5a6f4a,java.lang.String -> java.time.ZonedDateTime: org.springframework.format.datetime.standard.TemporalAccessorParser@218d010a
java.lang.String -> @org.springframework.format.annotation.DateTimeFormat java.util.Calendar: org.springframework.format.datetime.DateTimeFormatAnnotationFormatterFactory@2d79adce
java.lang.String -> @org.springframework.format.annotation.DateTimeFormat java.util.Date: org.springframework.format.datetime.DateTimeFormatAnnotationFormatterFactory@2d79adce
java.lang.String -> @org.springframework.format.annotation.NumberFormat java.lang.Byte: org.springframework.format.number.NumberFormatAnnotationFormatterFactory@4aa56e0e
java.lang.String -> @org.springframework.format.annotation.NumberFormat java.lang.Double: org.springframework.format.number.NumberFormatAnnotationFormatterFactory@4aa56e0e
java.lang.String -> @org.springframework.format.annotation.NumberFormat java.lang.Float: org.springframework.format.number.NumberFormatAnnotationFormatterFactory@4aa56e0e
java.lang.String -> @org.springframework.format.annotation.NumberFormat java.lang.Integer: org.springframework.format.number.NumberFormatAnnotationFormatterFactory@4aa56e0e
java.lang.String -> @org.springframework.format.annotation.NumberFormat java.lang.Short: org.springframework.format.number.NumberFormatAnnotationFormatterFactory@4aa56e0e
java.lang.String -> @org.springframework.format.annotation.NumberFormat java.math.BigDecimal: org.springframework.format.number.NumberFormatAnnotationFormatterFactory@4aa56e0e
java.lang.String -> @org.springframework.format.annotation.NumberFormat java.math.BigInteger: org.springframework.format.number.NumberFormatAnnotationFormatterFactory@4aa56e0e
java.lang.String -> java.lang.Boolean : org.springframework.core.convert.support.StringToBooleanConverter@6b0029da
java.lang.String -> java.lang.Character : org.springframework.core.convert.support.StringToCharacterConverter@79dcade1
java.lang.String -> java.lang.Enum : org.springframework.core.convert.support.StringToEnumConverterFactory@59004937
java.lang.String -> java.lang.Number : org.springframework.core.convert.support.StringToNumberConverterFactory@2d4b1acf
java.lang.String -> java.nio.charset.Charset : org.springframework.core.convert.support.StringToCharsetConverter@3415b...
2.validators
- 负责校验工作
3.bindResult
- 负责保存以及解析数据绑定期间数据校验产生的错误
3、数据绑定流程
4、自定义类型转换
1.步骤
-
实现Converter接口，写一个自定义类型的转换器
-
你的Converter得放进ConversionService中（Converter是ConversionService中的组件）
-
将WebDataBinder中的ConversionService设置成我们这个加了自定义类型转换器的ConversionService
-
配置出ConversionService
<!-- 告诉SpringMVC别用默认的ConversionService， 而用我自定义的ConversionService，可能有我们自定义的Converter --> <bean id="conversionService" class="org.springframework.context.support.ConversionServiceFactoryBean"> <!-- converters转换器中添加我们自定义的类型转换器 --> <property name="converters"> <set> <bean class="com.lql.component.MyStringToEmployeeConverter"></bean> </set> </property> </bean> -
让SpringMVC用我们的ConversionService
<!-- conversion-service="conversionService"：使用我们自己配置的类型转换组件 -->
<mvc:annotation-driven conversion-service="conversionService"></mvc:annotation-driven>
2.总结三步（换一种说法）
- 实现Converter接口，做一个自定义类型的转换器
- 将这个Converter配置在ConversionService中
- 告诉SpringMVC使用这个ConversionService
- 源码上WebDataBinder上的ConversionService组件替换了
ConversionService converters =
java.lang.Boolean -> java.lang.String : org.springframework.core.convert.support.ObjectToStringConverter@26baea68
java.lang.Character -> java.lang.Number : org.springframework.core.convert.support.CharacterToNumberFactory@7ddf5356
java.lang.Character -> java.lang.String : org.springframework.core.convert.support.ObjectToStringConverter@5b786b72
java.lang.Enum -> java.lang.Integer : org.springframework.core.convert.support.EnumToIntegerConverter@7a709d66
java.lang.Enum -> java.lang.String : org.springframework.core.convert.support.EnumToStringConverter@3cf7cd5b
java.lang.Integer -> java.lang.Enum : org.springframework.core.convert.support.IntegerToEnumConverterFactory@b68cfc9
java.lang.Number -> java.lang.Character : org.springframework.core.convert.support.NumberToCharacterConverter@245728b7
java.lang.Number -> java.lang.Number : org.springframework.core.convert.support.NumberToNumberConverterFactory@28ca2efb
java.lang.Number -> java.lang.String : org.springframework.core.convert.support.ObjectToStringConverter@616716d5
********************************************************************************
java.lang.String -> com.lql.bean.Employee : com.lql.component.MyStringToEmployeeConverter@30e6e7dd
********************************************************************************
java.lang.String -> java.lang.Boolean : org.springframework.core.convert.support.StringToBooleanConverter@3e012521
java.lang.String -> java.lang.Character : org.springframework.core.convert.support.StringToCharacterConverter@223c3438
java.lang.String -> java.lang.Enum : org.springframework.core.convert.support.StringToEnumConverterFactory@3bb56c98
java.lang.String -> java.lang.Number : org.springframework.core.convert.support.StringToNumberConverterFactory@77910832
java.lang.String -> java.nio.charset.Charset : org.springframework.core.convert.support.StringToCharsetConverter@25f5e65f
java.lang.String -> java.util.Currency : org.springframework.core.convert.support.StringToCurrencyConverter@3ebc894b
java.lang.String -> java.util.Locale : org.springframework.core.convert.support.StringToLocaleConverter@6a31ef1c
java.lang.String -> java.util.Properties : org.springframework.core.convert.support.StringToPropertiesConverter@2f9477b8
java.lang.String -> java.util.TimeZone : org.springframework.core.convert.support.StringToTimeZoneConverter@d0ce4bb
java.lang.String -> java.util.UUID : org.springframework.core.convert.support.StringToUUIDConverter@28d46e31
java.nio.charset.Charset -> java.lang.String : org.springframework.core.convert.support.ObjectToStringConverter@5b90c42a
java.time.ZoneId -> java.util.TimeZone : org.springframework.core.convert.support.ZoneIdToTimeZoneConverter@708c3b21
java.time.ZonedDateTime -> java.util.Calendar : org.springframework.core.convert.support.ZonedDateTimeToCalendarConverter@4e57a21
java.util.Currency -> java.lang.String : org.springframework.core.convert.support.ObjectToStringConverter@2559aa52
java.util.Locale -> java.lang.String : org.springframework.core.convert.support.ObjectToStringConverter@682e7a14
java.util.Properties -> java.lang.String : org.springframework.core.convert.support.PropertiesToStringConverter@72f857f4
java.util.UUID -> java.lang.String : org.springframework.core.convert.support.ObjectToStringConverter@40375a43
org.springframework.core.convert.support.ArrayToArrayConverter@77cb2990
org.springframework.core.convert.support.ArrayToCollectionConverter@4c92dc4a
org.springframework.core.convert.support.ArrayToObjectConverter@7b53dd9
org.springframework.core.convert.support.ArrayToStringConverter@62019d
org.springframework.core.convert.support.ByteBufferConverter@f20cfaa
org.springframework.core.convert.support.ByteBufferConverter@f20cfaa
org.springframework.core.convert.support.ByteBufferConverter@f20cfaa
org.springframework.core.convert.support.ByteBufferConverter@f20cfaa
org.springframework.core.convert.support.CollectionToArrayConverter@7ce565db
org.springframework.core.convert.support.CollectionToCollectionConverter@d549068
org.springframework.core.convert.support.CollectionToObjectConverter@6acd0c71
org.springframework.core.convert.support.CollectionToStringConverter@3379e562
org.springframework.core.convert.support.FallbackObjectToStringConverter@7636d645
org.springframework.core.convert.support.IdToEntityConverter@db1b888,org.springframework.core.convert.support.ObjectToObjectConverter@6772acb9
org.springframework.core.convert.support.MapToMapConverter@57fe7d04
org.springframework.core.convert.support.ObjectToArrayConverter@23076676
org.springframework.core.convert.support.ObjectToCollectionConverter@72e1f388
org.springframework.core.convert.support.ObjectToOptionalConverter@592d8ed0
org.springframework.core.convert.support.ObjectToOptionalConverter@592d8ed0
org.springframework.core.convert.support.ObjectToOptionalConverter@592d8ed0
org.springframework.core.convert.support.StreamConverter@e4f4a43
org.springframework.core.convert.support.StreamConverter@e4f4a43
org.springframework.core.convert.support.StreamConverter@e4f4a43
org.springframework.core.convert.support.StreamConverter@e4f4a43
org.springframework.core.convert.support.StringToArrayConverter@2e4b2fa8
org.springframework.core.convert.support.StringToCollectionConverter@44b8baca
5、<mvc:annotation-driven/>
1.SpringMVC解析<mvc:annotation-driven/>标签
- 添加了好多东西：
class AnnotationDrivenBeanDefinitionParser implements BeanDefinitionParser {
public static final String HANDLER_MAPPING_BEAN_NAME = RequestMappingHandlerMapping.class.getName();
public static final String HANDLER_ADAPTER_BEAN_NAME = RequestMappingHandlerAdapter.class.getName();
public static final String CONTENT_NEGOTIATION_MANAGER_BEAN_NAME = "mvcContentNegotiationManager";
private static final boolean javaxValidationPresent;
private static boolean romePresent;
private static final boolean jaxb2Present;
private static final boolean jackson2Present;
private static final boolean jackson2XmlPresent;
private static final boolean jackson2SmilePresent;
private static final boolean jackson2CborPresent;
private static final boolean gsonPresent;
static {
ClassLoader classLoader = AnnotationDrivenBeanDefinitionParser.class.getClassLoader();
javaxValidationPresent = ClassUtils.isPresent("javax.validation.Validator", classLoader);
romePresent = ClassUtils.isPresent("com.rometools.rome.feed.WireFeed", classLoader);
jaxb2Present = ClassUtils.isPresent("javax.xml.bind.Binder", classLoader);
jackson2Present = ClassUtils.isPresent("com.fasterxml.jackson.databind.ObjectMapper", classLoader) &&
ClassUtils.isPresent("com.fasterxml.jackson.core.JsonGenerator", classLoader);
jackson2XmlPresent = ClassUtils.isPresent("com.fasterxml.jackson.dataformat.xml.XmlMapper", classLoader);
jackson2SmilePresent = ClassUtils.isPresent("com.fasterxml.jackson.dataformat.smile.SmileFactory", classLoader);
jackson2CborPresent = ClassUtils.isPresent("com.fasterxml.jackson.dataformat.cbor.CBORFactory", classLoader);
gsonPresent = ClassUtils.isPresent("com.google.gson.Gson", classLoader);
}
@Override
@Nullable
public BeanDefinition parse(Element element, ParserContext context) {
Object source = context.extractSource(element);
XmlReaderContext readerContext = context.getReaderContext();
CompositeComponentDefinition compDefinition = new CompositeComponentDefinition(element.getTagName(), source);
context.pushContainingComponent(compDefinition);
RuntimeBeanReference contentNegotiationManager = getContentNegotiationManager(element, source, context);
RootBeanDefinition handlerMappingDef = new RootBeanDefinition(RequestMappingHandlerMapping.class);
handlerMappingDef.setSource(source);
handlerMappingDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
handlerMappingDef.getPropertyValues().add("order", 0);
handlerMappingDef.getPropertyValues().add("contentNegotiationManager", contentNegotiationManager);
if (element.hasAttribute("enable-matrix-variables")) {
Boolean enableMatrixVariables = Boolean.valueOf(element.getAttribute("enable-matrix-variables"));
handlerMappingDef.getPropertyValues().add("removeSemicolonContent", !enableMatrixVariables);
}
configurePathMatchingProperties(handlerMappingDef, element, context);
readerContext.getRegistry().registerBeanDefinition(HANDLER_MAPPING_BEAN_NAME, handlerMappingDef);
RuntimeBeanReference corsRef = MvcNamespaceUtils.registerCorsConfigurations(null, context, source);
handlerMappingDef.getPropertyValues().add("corsConfigurations", corsRef);
RuntimeBeanReference conversionService = getConversionService(element, source, context);
RuntimeBeanReference validator = getValidator(element, source, context);
RuntimeBeanReference messageCodesResolver = getMessageCodesResolver(element);
RootBeanDefinition bindingDef = new RootBeanDefinition(ConfigurableWebBindingInitializer.class);
bindingDef.setSource(source);
bindingDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
bindingDef.getPropertyValues().add("conversionService", conversionService);
bindingDef.getPropertyValues().add("validator", validator);
bindingDef.getPropertyValues().add("messageCodesResolver", messageCodesResolver);
ManagedList<?> messageConverters = getMessageConverters(element, source, context);
ManagedList<?> argumentResolvers = getArgumentResolvers(element, context);
ManagedList<?> returnValueHandlers = getReturnValueHandlers(element, context);
String asyncTimeout = getAsyncTimeout(element);
RuntimeBeanReference asyncExecutor = getAsyncExecutor(element);
ManagedList<?> callableInterceptors = getInterceptors(element, source, context, "callable-interceptors");
ManagedList<?> deferredResultInterceptors = getInterceptors(element, source, context, "deferred-result-interceptors");
RootBeanDefinition handlerAdapterDef = new RootBeanDefinition(RequestMappingHandlerAdapter.class);
handlerAdapterDef.setSource(source);
handlerAdapterDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
handlerAdapterDef.getPropertyValues().add("contentNegotiationManager", contentNegotiationManager);
handlerAdapterDef.getPropertyValues().add("webBindingInitializer", bindingDef);
handlerAdapterDef.getPropertyValues().add("messageConverters", messageConverters);
addRequestBodyAdvice(handlerAdapterDef);
addResponseBodyAdvice(handlerAdapterDef);
if (element.hasAttribute("ignore-default-model-on-redirect")) {
Boolean ignoreDefaultModel = Boolean.valueOf(element.getAttribute("ignore-default-model-on-redirect"));
handlerAdapterDef.getPropertyValues().add("ignoreDefaultModelOnRedirect", ignoreDefaultModel);
}
if (argumentResolvers != null) {
handlerAdapterDef.getPropertyValues().add("customArgumentResolvers", argumentResolvers);
}
if (returnValueHandlers != null) {
handlerAdapterDef.getPropertyValues().add("customReturnValueHandlers", returnValueHandlers);
}
if (asyncTimeout != null) {
handlerAdapterDef.getPropertyValues().add("asyncRequestTimeout", asyncTimeout);
}
if (asyncExecutor != null) {
handlerAdapterDef.getPropertyValues().add("taskExecutor", asyncExecutor);
}
handlerAdapterDef.getPropertyValues().add("callableInterceptors", callableInterceptors);
handlerAdapterDef.getPropertyValues().add("deferredResultInterceptors", deferredResultInterceptors);
readerContext.getRegistry().registerBeanDefinition(HANDLER_ADAPTER_BEAN_NAME, handlerAdapterDef);
RootBeanDefinition uriContributorDef =
new RootBeanDefinition(CompositeUriComponentsContributorFactoryBean.class);
uriContributorDef.setSource(source);
uriContributorDef.getPropertyValues().addPropertyValue("handlerAdapter", handlerAdapterDef);
uriContributorDef.getPropertyValues().addPropertyValue("conversionService", conversionService);
String uriContributorName = MvcUriComponentsBuilder.MVC_URI_COMPONENTS_CONTRIBUTOR_BEAN_NAME;
readerContext.getRegistry().registerBeanDefinition(uriContributorName, uriContributorDef);
RootBeanDefinition csInterceptorDef = new RootBeanDefinition(ConversionServiceExposingInterceptor.class);
csInterceptorDef.setSource(source);
csInterceptorDef.getConstructorArgumentValues().addIndexedArgumentValue(0, conversionService);
RootBeanDefinition mappedInterceptorDef = new RootBeanDefinition(MappedInterceptor.class);
mappedInterceptorDef.setSource(source);
mappedInterceptorDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
mappedInterceptorDef.getConstructorArgumentValues().addIndexedArgumentValue(0, (Object) null);
mappedInterceptorDef.getConstructorArgumentValues().addIndexedArgumentValue(1, csInterceptorDef);
String mappedInterceptorName = readerContext.registerWithGeneratedName(mappedInterceptorDef);
RootBeanDefinition methodExceptionResolver = new RootBeanDefinition(ExceptionHandlerExceptionResolver.class);
methodExceptionResolver.setSource(source);
methodExceptionResolver.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
methodExceptionResolver.getPropertyValues().add("contentNegotiationManager", contentNegotiationManager);
methodExceptionResolver.getPropertyValues().add("messageConverters", messageConverters);
methodExceptionResolver.getPropertyValues().add("order", 0);
addResponseBodyAdvice(methodExceptionResolver);
if (argumentResolvers != null) {
methodExceptionResolver.getPropertyValues().add("customArgumentResolvers", argumentResolvers);
}
if (returnValueHandlers != null) {
methodExceptionResolver.getPropertyValues().add("customReturnValueHandlers", returnValueHandlers);
}
String methodExResolverName = readerContext.registerWithGeneratedName(methodExceptionResolver);
RootBeanDefinition statusExceptionResolver = new RootBeanDefinition(ResponseStatusExceptionResolver.class);
statusExceptionResolver.setSource(source);
statusExceptionResolver.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
statusExceptionResolver.getPropertyValues().add("order", 1);
String statusExResolverName = readerContext.registerWithGeneratedName(statusExceptionResolver);
RootBeanDefinition defaultExceptionResolver = new RootBeanDefinition(DefaultHandlerExceptionResolver.class);
defaultExceptionResolver.setSource(source);
defaultExceptionResolver.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
defaultExceptionResolver.getPropertyValues().add("order", 2);
String defaultExResolverName = readerContext.registerWithGeneratedName(defaultExceptionResolver);
context.registerComponent(new BeanComponentDefinition(handlerMappingDef, HANDLER_MAPPING_BEAN_NAME));
context.registerComponent(new BeanComponentDefinition(handlerAdapterDef, HANDLER_ADAPTER_BEAN_NAME));
context.registerComponent(new BeanComponentDefinition(uriContributorDef, uriContributorName));
context.registerComponent(new BeanComponentDefinition(mappedInterceptorDef, mappedInterceptorName));
context.registerComponent(new BeanComponentDefinition(methodExceptionResolver, methodExResolverName));
context.registerComponent(new BeanComponentDefinition(statusExceptionResolver, statusExResolverName));
context.registerComponent(new BeanComponentDefinition(defaultExceptionResolver, defaultExResolverName));
// Ensure BeanNameUrlHandlerMapping (SPR-8289) and default HandlerAdapters are not "turned off"
MvcNamespaceUtils.registerDefaultComponents(context, source);
context.popAndRegisterContainingComponent();
return null;
}
2.<mvc:default-servlet-handler/>和 mvc:annotation-driven
-
均不配置
- 动态资源（@RequestMapping映射的资源）能访问，静态资源（.html、.js、.img）不行
- HandlerMapping
- RequestMappingHandlerMapping中的mappingLookup中保存了每一个资源的映射信息，而没有保存静态资源映射的请求。==故动态资源能访问，静态不能==。
- HandlerAdapter（方法执行的适配器）
-
RequestMappingHandlerAdapter帮我们执行目标方法
-
配前者不配后者
- 静态资源🆗，动态资源完蛋
- HandlerMapping
- SimpleUrlHandlerMapping替换了RequestMappingHandlerMapping，而前者能把所有请求映射给tomcat，==故静态资源能访问，而动态不能。==
- HandlerAdapter（方法执行的适配器）
- RequestMappingHandlerAdapter都没了，方法都不能执行
-
配后者不配前者
- 动态资源🆗，静态资源完蛋
-
均配置
- 动、静态资源都能访问
- HandlerMapping
6、格式化
1.需求
- 日期格式：2020-12-07
- 页面提交的数据格式如果不正确，就是404
2.解决
- 对日期类型的属性使用 @DateTimeFormat 注解
-
==注意：如果要使用自定义类型转换==（不用自定义类型转换也是可以的）
- ConversionServiceFactoryBean创建的ConversionService组件是没有格式化器存在的
- 而实现ConversionService接口的 FormattingConversionService既具有类型转换的功能，又具有格式化的功能
7、数据校验
-
只做前端校验是不安全的
-
在重要数据一定要加上后端验证
可以写程序将我们每一个数据取出进行校验，如果失败直接来到添加页面，提示其重新填写- SpringMVC：可以JSR303来做数据校验
- JDBC：规范—》实现（各个厂商的驱动包）
- JSR303：规范—-》Hibernate Validator（第三方校验框架）
1.JSR 303
-
JSR 303 是 Java 为 Bean 数据合法性校验提供的标准框架，它已经包含在 JavaEE 6.0 中
-
JSR 303 通过在 Bean 属性上标注类似于 @NotNull、@Max 等标准的注解指定校验规则，并通过标准的验证接口对 Bean 进行验证
2.如何快速的进行后端校验
-
导入校验框架的jar包
- 有几个带el的jar包不导入，tomcat中有（tomcat7.0以上el表达式比较强大）；如果tomcat的版本是7.0以下将带el的几个jar包放在tomcat的lib文件夹下
hibernate-validator-5.0.0.CR2.jar hibernate-validator-annotation-processor-5.0.0.CR2.jar
classmate-0.8.0.jar jboss-logging-3.1.1.GA.jar validation-api-1.1.0.CR1.jar
-
只需要给javaBean的属性添加上校验注解
-
在SpringMVC封装对象的时候，告诉SpringMVC这个javaBean需要校验
public String addEmp(@Valid Employee employee) { -
如何知道校验结果
- 给需要校验的javaBean后面紧跟一个BindingResult。这个BindingResult就是封装前一个bean的校验结果
-
根据不同的校验结果决定怎么办
-
来到页面使用
<form:errors path=""/>取出错误信息
3.原生的表单怎么办？
-
将错误放在请求域中
-
用el表达式获取错误信息
4.国际化定制自己的错误消息显示
1、编写国际化的文件
- errors_zh_CN.properties
- errors_en_US.properties
- ==注意==
- 格式：key=lastname betweenn 6 and 18
- key有规定
- 校验错误信息
Field error in object 'employee' on field 'birth': rejected value [aaA]; codes [typeMismatch.employee.birth,typeMismatch.birth,typeMismatch.java.util.Date,typeMismatch]; arguments [org.springframework.context.support.DefaultMessageSourceResolvable: codes [employee.birth,birth]; arguments []; default message [birth]]; default message [Failed to convert property value of type 'java.lang.String' to required type 'java.util.Date' for property 'birth'; nested exception is org.springframework.core.convert.ConversionFailedException: Failed to convert from type [java.lang.String] to type [@org.springframework.format.annotation.DateTimeFormat @javax.validation.constraints.Past java.util.Date] for value 'aaA'; nested exception is java.lang.IllegalArgumentException: Parse attempt failed for value [aaA]]
Field error in object 'employee' on field 'email': rejected value [a]; codes [Email.employee.email,Email.email,Email.java.lang.String,Email]; arguments [org.springframework.context.support.DefaultMessageSourceResolvable: codes [employee.email,email]; arguments []; default message [email],[Ljavax.validation.constraints.Pattern$Flag;@36575bc1,.*]; default message [not a well-formed email address]
每一个字段发生错误以后，都会有自己的错误代码；国际化文件中错误消息的key必须对应一个错误代码：
==codes==
[
Email.employee.email, 校验规则.隐含模型中这个对象的key.对象的属性
Email.email, 校验规则.属性名
Email.java.lang.String, 校验规则.属性类型
];
| codes | 解释 |
|---|---|
| Email.employee.email | 隐含模型中employee对象的email字段发生了**@Email**校验错误 |
| Email.email | 所有的email属性只要发生了**@Email**错误 |
| Email.java.lang.String | 只要是String类型发生了**@Email**错误 |
| 只要发生了**@Email**校验错误 |
2、让SpringMVC管理国际化资源文件
<!-- 管理国际化资源文件 -->
<bean class="org.springframework.context.support.ResourceBundleMessageSource">
<property name="basename" value="errors"></property>
</bean>
3、来到页面取值
- 用
<form:errors path=""/>（见上面快速后端校验）
4、高级国际化
- 动态传入消息参数
Length.java.lang.String=length incorrect {0} {1} {2}
-
{0}：永远都是当前属性名；
-
{1}、{2}：匹配注解参数
5.简单错误消息显示（不能国际化）
8、ajax
1.SpringMVC快速的完成ajax功能
1、要求
- 返回数据是json就🆗
- 页面发
$.ajax();请求
- 页面发
2、原生javaWeb
- 导入GSON
- 返回的数据用GSON转成json
- 写出去
3、SpringMVC-ajax
-
导包
jackson-annotations-2.1.5.jar jackson-core-2.1.5.jar jackson-databind-2.1.5.jar
-
写配置
-
测试
==文件上传下载等见源码==
9、总体架构：
10、web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd" id="WebApp_ID" version="3.1">
<display-name>7.SpringMVC_crud</display-name>
<welcome-file-list>
<welcome-file>index.html</welcome-file>
<welcome-file>index.htm</welcome-file>
<welcome-file>index.jsp</welcome-file>
<welcome-file>default.html</welcome-file>
<welcome-file>default.htm</welcome-file>
<welcome-file>default.jsp</welcome-file>
</welcome-file-list>
<!-- The front controller of this Spring Web application, responsible for handling all application requests -->
<servlet>
<servlet-name>springDispatcherServlet</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:springmvc.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
<!-- Map all requests to the DispatcherServlet for handling -->
<servlet-mapping>
<servlet-name>springDispatcherServlet</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!-- 字符编码Filter -->
<filter>
<filter-name>CharacterEncodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
<init-param>
<param-name>forceRequestEncoding</param-name>
<param-value>true</param-value>
</init-param>
<init-param>
<param-name>forceResponseEncoding</param-name>
<param-value>true</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>CharacterEncodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!-- 支持Rest风格转换的Filter -->
<filter>
<filter-name>HiddenHttpMethodFilter</filter-name>
<filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>HiddenHttpMethodFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>
11、springmvc.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
<context:component-scan base-package="com.lql"></context:component-scan>
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/pages/"></property>
<property name="suffix" value=".jsp"></property>
</bean>
<!-- 默认前端控制器是拦截所有资源（除过jsp），js文件就404了；要js文件的请求是交给tomcat处理的
http://localhost:8080/7.SpringMVC_crud/scripts/jquery-1.9.1.min.js -->
<!-- 告诉SpringMVC，自己映射的请求就自己处理，不能处理的请求直接交给tomcat -->
<!-- 静态资源能访问，动态映射的请求就不行 -->
<mvc:default-servlet-handler/>
<!-- SprigMVC可以保证动态请求和静态请求都能访问 -->
<!-- conversion-service="conversionService"：使用我们自己配置的类型转换组件 -->
<mvc:annotation-driven conversion-service="conversionService"></mvc:annotation-driven>
<!-- 告诉SpringMVC别用默认的ConversionService，
而用我自定义的ConversionService，可能有我们自定义的Converter -->
<!-- 以后写自定义类型转换器的时候，就使用FormattingConversionServiceFactoryBean来注册，
既具有类型转换还有格式化功能 -->
<bean id="conversionService"
class="org.springframework.format.support.FormattingConversionServiceFactoryBean">
<!-- converters转换器中添加我们自定义的类型转换器 -->
<property name="converters">
<set>
<bean class="com.lql.component.MyStringToEmployeeConverter"></bean>
</set>
</property>
</bean>
<!-- 管理国际化资源文件 -->
<bean id="messageSource" class="org.springframework.context.support.ResourceBundleMessageSource">
<property name="basename" value="errors"></property>
</bean>
</beans>
12、jsp页面
****************index.jsp****************************
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!-- 访问项目就要展示员工列表页面 -->
<jsp:forward page="/emps"></jsp:forward>
****************emps.jsp****************************
<%@page import="java.util.Date"%>
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
<%
pageContext.setAttribute("ctp", request.getContextPath());
%>
<script type="text/javascript" src="scripts/jquery-1.9.1.min.js"></script>
</head>
<body>
<%=new Date() %>
<a href="${ctp}/getallajax">ajax获取所有员工</a><br>
<div>
</div>
<script type="text/javascript">
$("a:first").click(function(){
//1、发送ajax获取所有员工
$.ajax({
url:"${ctp}/getallajax",
type:"GET",
success:function(data){
//console.log(data);
$.each(data,function(){
var empInfo = this.lastName+"--->"+this.birth+"--->"+this.gender;
$("div").append(empInfo+"<br>");
});
}
});
return false;
});
</script>
</body>
</html>
****************testOther.jsp************************
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
<%
pageContext.setAttribute("ctp", request.getContextPath());
%>
</head>
<script type="text/javascript" src="scripts/jquery-1.9.1.min.js"></script>
<body>
<form action="${ctp}/test02" method="post"
enctype="multipart/form-data">
<input name="username" value="tomcat" /> <input name="password"
value="123456" /> <input type="file" name="file" /> <input
type="submit" />
</form>
<a href="${ctp}/testRequestBody">ajax发送json数据</a>
</body>
<script type="text/javascript">
$("a:first").click(function() {
//点击发送ajax请求，请求带的数据是json
var emp = {
lastName : "张三",
email : "aaa@aa.com",
gender : 0
};
//alert(typeof emp);
//js对象
var empStr = JSON.stringify(emp);
//alert(typeof empStr);
$.ajax({
url : "${ctp}/testRequestBody",
type : "POST",
data : empStr,
contentType : "application/json",
success : function(data) {
alert(data);
}
});
return false;
});
</script>
</html>
****************list.jsp****************************
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<%
pageContext.setAttribute("ctp", request.getContextPath());
%>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>员工列表页面</title>
</head>
<body>
<h1>员工列表</h1>
<script type="text/javascript" src="${ctp }/scripts/jquery-1.9.1.min.js"></script>
<table border="1" cellpadding="5" cellspacing="0">
<tr>
<th>ID</th>
<th>LastName</th>
<th>Email</th>
<th>Gender</th>
<th>Birth</th>
<th>Salary</th>
<th>Department</th>
<th>EDIT</th>
<th>DELETE</th>
</tr>
<c:forEach items="${emps }" var="emp">
<tr>
<td>${emp.id}</td>
<td>${emp.lastName}</td>
<td>${emp.email}</td>
<td>${emp.gender==0?"女":"男"}</td>
<td>${emp.birth}</td>
<td>${emp.salary}</td>
<td>${emp.department.departmentName}</td>
<td>
<a href="${ctp }/emp/${emp.id}">edit</a>
</td>
<td>
<a href="${ctp }/emp/${emp.id}" class="delBtn">delete</a>
</td>
</tr>
</c:forEach>
</table>
<a href="${ctp }/toaddpage">添加员工</a>
<form action="${ctp }/quickadd">
<!-- 将员工的所有信息都写上，自动封装对象 -->
<input name="empinfo" value="empAdmin-admin@qq.com-1-101"/>
<input type="submit" value="快速添加"/>
</form>
<form action="${ctp }/emp/${emp.id}" method="post" id="deleteForm">
<input type="hidden" name="_method" value="DELETE"/>
</form>
<script type="text/javascript">
$(function(){
$(".delBtn").click(function(){
//0、确认删除？
if(confirm("确认要删除吗？")){
//1、改变表单的action指向
$("#deleteForm").attr("action",this.href);
//2、提交表单
$("#deleteForm").submit();
return false;}else{
return false;
}
});
});
</script>
</body>
</html>
****************add.jsp****************************
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@taglib prefix="form" uri="http://www.springframework.org/tags/form" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
<h1>员工添加</h1>
<!-- 表单标签：
通过 SpringMVC 的表单标签可以实现将模型数据中的属性和 HTML 表单元素相绑定，
以实现表单数据更便捷编辑和表单值的回显
1)、SpringMVC认为，表单数据中的每一项最终都是要回显的；
path指定的是一个属性，这个属性是从隐含模型（请求域中取出的某个对象中的属性）
path指定的每一个属性，请求域中必须有一个对象拥有这个属性；
这个对象就是请求域中的command；
modelAttribute=""：
1）、以前我们表单标签会从请求域中获取一个command对象；把这个对象中的每一个属性对应的显示出来
2）、可以告诉SpringMVC不要去取command的值了，我放了一个modelAttribute指定的值，
取对象用的key就用我modelAttribute指定的；
-->
<%
pageContext.setAttribute("ctp", request.getContextPath());
%>
<form:form action="${ctp }/emp" modelAttribute="employee" method="POST">
<!-- path就是原来html-input的name项；需要写
path：
1）、当作原生的name项
2）、自动回显隐含模型中某个对象对应的这个属性的值
-->
lastName:<form:input path="lastName"/>
<form:errors path="lastName"/>-->${errorInfo.lastName}
<br>
eamil:<form:input path="email"/>
<form:errors path="email"/>-->${errorInfo.email}
<br>
gender:<br>
男：<form:radiobutton path="gender" value="1"/><br>
女：<form:radiobutton path="gender" value="0"/><br>
birth:<form:input path="birth"/>
<form:errors path="birth"/>-->${errorInfo.birth}
<br/>
salary:<form:input path="salary"/><br/>
dept:
<!-- items=""：指定要遍历的集合，自动遍历；遍历出的每一个元素是一个department对象
itemLabel="属性名"：指定遍历出的这个对象的哪个属性是作为option标签体的值
itemValue="属性名"：指定刚才遍历出来的这个对象的哪个属性是作为要提交的value值
-->
<form:select path="department.id"
items="${depts}"
itemLabel="departmentName"
itemValue="id"></form:select><br>
<input type="submit" value="保存"/>
</form:form>
<!-- (Employee) -->
<%-- <form action="">
lastName：<input type="text" name="lastName"/><br>
email：<input type="text" name="email"/><br>
gender：<br>
男：<input type="radio" name="gender" value="1"/><br>
女：<input type="radio" name="gender" value="0"/><br>
dept：
<select name="department.id">
<c:forEach items="${depts }" var="deptItem">
<!-- 标签中的是在页面 的提示选项信息，value才是真正提交的值-->
<option value="${deptItem.id}">${deptItem.departmentName}</option>
</c:forEach>
</select>
<input type="submit" value="提交"/>
</form> --%>
</body>
</html>
****************edit.jsp****************************
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@taglib prefix="form" uri="http://www.springframework.org/tags/form" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
<%
pageContext.setAttribute("ctp", request.getContextPath());
%>
</head>
<body>
<h1>员工修改页面</h1>
<!-- modelAttribute：这个表单的所有内容显示绑定的是绑定的是请求域中employee的值 -->
<form:form action="${ctp }/emp/${employee.id }"
modelAttribute="employee" method="post">
<input type="hidden" name="_method" value="put"/>
<input type="hidden" name="id" value="${employee.id }"/>
email:<form:input path="email"/><br>
gender:
男:<form:radiobutton path="gender" value="1"/>
女:<form:radiobutton path="gender" value="0"/><br>
dept:<form:select path="department.id" items="${depts }"
itemLabel="departmentName" itemValue="id"></form:select>
<input type="submit" value="修改" />
</form:form>
</body>
</html>
13、bean
package com.lql.bean;
import java.util.Date;
import javax.validation.constraints.Past;
import org.hibernate.validator.constraints.Email;
import org.hibernate.validator.constraints.Length;
import org.hibernate.validator.constraints.NotEmpty;
import org.springframework.format.annotation.DateTimeFormat;
import org.springframework.format.annotation.NumberFormat;
import com.fasterxml.jackson.annotation.JsonFormat;
import com.fasterxml.jackson.annotation.JsonIgnore;
public class Employee {
private Integer id;
@NotEmpty(message="不能为空")
@Length(min=6,max=18)
private String lastName;
@Email
private String email;
//1 male, 0 female
private Integer gender;
//规定页面提交的日期格式
//@Past：必须是一个过去的时间
//@Future：必须是一个未来的时间
@DateTimeFormat(pattern="yyyy-MM-dd")
@Past
@JsonFormat(pattern="yyyy-MM-dd")
private Date birth = new Date();
//假设页面为了显示方便提交的工资是￥10,000.98
@NumberFormat(pattern="#,###.##")
private Double salary;
@JsonIgnore
private Department department;
public Double getSalary() {
return salary;
}
public void setSalary(Double salary) {
this.salary = salary;
}
public Date getBirth() {
return birth;
}
public void setBirth(Date birth) {
this.birth = birth;
}
public Integer getId() {
return id;
}
public void setId(Integer id) {
this.id = id;
}
public String getLastName() {
return lastName;
}
public void setLastName(String lastName) {
this.lastName = lastName;
}
public String getEmail() {
return email;
}
public void setEmail(String email) {
this.email = email;
}
public Integer getGender() {
return gender;
}
public void setGender(Integer gender) {
this.gender = gender;
}
public Department getDepartment() {
return department;
}
public void setDepartment(Department department) {
this.department = department;
}
public Employee(Integer id, String lastName, String email, Integer gender,
Department department) {
super();
this.id = id;
this.lastName = lastName;
this.email = email;
this.gender = gender;
this.department = department;
}
public Employee() {
}
@Override
public String toString() {
return "Employee [id=" + id + ", lastName=" + lastName + ", email=" + email + ", gender=" + gender + ", birth="
+ birth + ", salary=" + salary + ", department=" + department + "]";
}
}
14、component
package com.lql.component;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.core.convert.converter.Converter;
import com.lql.bean.Employee;
import com.lql.dao.DepartmentDao;
/**
* 两个泛型
*
* S：Source
* T：Target
* 将S转为T
* @author 陆乾龙
*
*/
public class MyStringToEmployeeConverter implements Converter<String, Employee>{
@Autowired
DepartmentDao dapartmentDao;
/**
* 自定义的转换规则
*/
@Override
public Employee convert(String source) {
// TODO Auto-generated method stub
//empAdmin-admin@qq.com-1-101
System.out.println("页面提交的将要转换的字符串"+source);
Employee employee = new Employee();
if(source.contains("-")){
String[] split = source.split("-");
employee.setLastName(split[0]);
employee.setEmail(split[1]);
employee.setGender(Integer.parseInt(split[2]));
employee.setDepartment(dapartmentDao.getDepartment(Integer.parseInt(split[3])));
}
return employee;
}
}
15、Controller
package com.lql.controller;
import java.util.Collection;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import javax.validation.Valid;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.validation.BindingResult;
import org.springframework.validation.FieldError;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
import com.lql.bean.Department;
import com.lql.bean.Employee;
import com.lql.dao.DepartmentDao;
import com.lql.dao.EmployeeDao;
@Controller
public class EmployeeController {
@Autowired
EmployeeDao employeeDao;
@Autowired
DepartmentDao departmentDao;
/**
* 发送的请求是什么？
*
* quickadd？empinfo=empAdmin-admin@qq.com-1-101
*
* @RequestParam("empinfo")Employee employee：
* =》Employee employee = request.getParameter("empinfo");
*
* 可以通过写一个自定义类型转换器让其工作；
* @param employee
* @return
*/
@RequestMapping("/quickadd")
public String quickAdd(@RequestParam("empinfo")Employee employee){
System.out.println("封装："+employee);
employeeDao.save(employee);
return "redirect:/emps";
}
/**
* 查询所有员工
*/
@RequestMapping("/emps")
public String getEmps(Model model){
Collection<Employee> all = employeeDao.getAll();
model.addAttribute("emps", all);
return "list";
}
@RequestMapping(value="/emp/{id}",method=RequestMethod.DELETE)
public String deleteEmp(@PathVariable("id")Integer id) {
employeeDao.delete(id);
return "redirect:/emps";
}
/**
* 查询员工，来到修改页面回显
* @param id
* @param model
* @return
*/
@RequestMapping(value="/emp/{id}",method=RequestMethod.GET)
public String getEmp(@PathVariable("id")Integer id,Model model) {
//1、查出员工信息
Employee employee = employeeDao.get(id);
//2、放在请求域中
model.addAttribute("employee",employee);
//3、继续查出部门信息放在隐含模型中
Collection<Department> departments = departmentDao.getDepartments();
model.addAttribute("depts", departments);
return "edit";
}
//@ModelAttribute("employee")
@RequestMapping(value="/emp/{id}",method=RequestMethod.PUT)
public String updateEmp(Employee employee/*,@PathVariable("id")Integer id*/){
System.out.println("要修改的员工："+employee);
// xxxx更新修改二合一
//employeeDao.save(employee);
return "redirect:/emps";
}
@ModelAttribute
public void myModelAttribute(
@RequestParam(value = "id",required = false)Integer id,Model model){
if(id != null){
Employee employee = employeeDao.get(id);
model.addAttribute("employee", employee);
}
System.out.println("hahaha");
//1、先查出所有部门
Collection<Department> departments = departmentDao.getDepartments();
//2、放在请求域中
model.addAttribute("depts",departments);
}
/**
* 保存员工
* @param employee
* @return
*/
@RequestMapping(value="/emp",method=RequestMethod.POST)
public String addEmp(@Valid Employee employee,BindingResult result,Model model) {
System.out.println("要添加的员工："+employee);
//获取是否有校验错误
boolean hasErrors = result.hasErrors();
Map<String, Object> errorsMap = new HashMap<String,Object>();
if(hasErrors){
List<FieldError> fieldErrors = result.getFieldErrors();
for(FieldError errors : fieldErrors){
System.out.println("错误消息提示："+errors.getDefaultMessage());
System.out.println("错误的字段是："+errors.getField());
System.out.println(errors);
System.out.println("-----------------");
errorsMap.put(errors.getField(), errors.getDefaultMessage());
}
model.addAttribute("errorInfo",errorsMap);
System.out.println("有校验错误");
return "add";
}else {
employeeDao.save(employee);
//返回列表页面;重定向到查询所有员工的请求
return "redirect:/emps";
}
}
/**
* 去员工添加页面，去页面之前需要查出所有部门信息，进行展示的
* @return
*/
@RequestMapping("/toaddpage")
public String toAddPage(Model model) {
/*//1、先查出所有部门
Collection<Department> departments = departmentDao.getDepartments();
//2、放在请求域中
model.addAttribute("depts",departments);*/
//model.addAttribute("command",new Employee(null, "张三", "haha@gmail.com", 0, departmentDao.getDepartment(102)));
model.addAttribute("employee", new Employee());
//3、去添加页面
return "add";
}
}
=====================================================
package com.lql.controller;
import java.io.FileInputStream;
import java.util.Collection;
import javax.servlet.ServletContext;
import javax.servlet.ServletRequest;
import javax.servlet.http.HttpServletRequest;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpEntity;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Controller;
import org.springframework.util.MultiValueMap;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import com.lql.bean.Employee;
import com.lql.dao.EmployeeDao;
@Controller
public class AjaxTestController {
@Autowired
EmployeeDao employeeDao;
/**
* SpringMVC文件下载
* @param request
* @return
* @throws Exception
*/
@RequestMapping("/download")
public ResponseEntity<byte[]> download(HttpServletRequest request) throws Exception{
//1、得到要下载的文件的流；
//找到要下载的文件的真实路径
ServletContext servletContext = request.getServletContext();
String realPath = servletContext.getRealPath("/scripts/jquery-1.9.1.min.js");
FileInputStream fileInputStream = new FileInputStream(realPath);
byte[] tmp = new byte[fileInputStream.available()];
fileInputStream.read(tmp);
fileInputStream.close();
//2、将要下载的文件流返回
HttpHeaders httpHeaders = new HttpHeaders();
httpHeaders.set("Content-Disposition", "attachment;filename="+"jquery-1.9.1.min.js");
return new ResponseEntity<>(tmp, httpHeaders, HttpStatus.OK);
}
/**
* @ResponseBody:
* 将返回数据放在响应体中
*
* ResponseEntity<String>:响应体中内容的类型
* @return
*/
//@ResponseBody
@RequestMapping("/haha")
public ResponseEntity<String> hahah(){
System.out.println("hahaha....");
HttpStatus statusCode;
MultiValueMap<String, String> headers = new HttpHeaders();
String body = "<h1>success</h1>";
headers.add("Set-Cookie", "username=hahahaha");
return new ResponseEntity<String>(body, headers, HttpStatus.OK);
}
/**
* 如果参数位置写HttpEntity<String> str;
* 比@RequestBody更强，可以拿到请求头；
* @RequestHeader("")
*
* @param str
* @return
*/
@RequestMapping("/test02")
public String test02(HttpEntity<String> str){
System.out.println(str);
return "success";
}
/**
*
*/
@RequestMapping("/test01")
public String test01(@RequestBody String str){
System.out.println("请求体："+str);
return "success";
}
/**
* @RequestBody:请求体，获取一个请求的请求体
* @RequestParam:
*
* @Responsebody：可以把对象转为json数据，返回给浏览器
*
* @RequsetBody：接收json数据，封装为对象
* @return
*/
@RequestMapping("/testRequestBody")
public String testRequestBody(@RequestBody(required=false) Employee employee){
System.out.println("请求体："+employee);
return "success";
}
/**
* @ResponseBody:
* 将返回的数据放在响应体中；
* 如果是对象，jackson自动将对象转为json格式
* @return
*/
@ResponseBody
@RequestMapping("/getallajax")
public Collection<Employee> ajaxGetAll(){
Collection<Employee> all = employeeDao.getAll();
return all;
}
}
16、文件上传
1.index.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
<%
pageContext.setAttribute("ctp", request.getContextPath());
%>
</head>
<body>
<!--
1)、文件上传：
1、文件上传表单准备：enctype="multipart/form-data"
2、导入fileupload：
commons-fileupload-1.4.jar
commons-io-2.8.0.jar
3、javaWeb：
object = new FileItemDiskFactory();
ServletFileUpload upload = new ServletFileUpload(object);
upload<FileItem> items = upload.parseRequest(upload);
for(FileItem item:items){
if(item.isField()){
//普通项
}else{
//文件项
IOUtils.copy();//文件保存
}
}
3、只需要在SpringMVC配置文件中，编写一个配置，配置文件上传解析器（MultipartResolver）；
4、文件上传请求处理
在处理器方法上写一个
@RequestParam("headerimg")MultipartFile file,封装当前文件的信息，可以直接保存
-->
${msg }
<form action="${ctp}/upload" method="post" enctype="multipart/form-data">
用户头像：<input type="file" name="headerimg"/><br>
用户头像：<input type="file" name="headerimg"/><br>
用户头像：<input type="file" name="headerimg"/><br>
用户头像：<input type="file" name="headerimg"/><br>
用户名：<input type="text" name="username"/><br>
<input type="submit"/> </form><br><br><br>
<a href="${ctp}/hello">hello</a>
</body>
</html>
2.springmvc.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
<context:component-scan base-package="com.lql"></context:component-scan>
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/pages/"></property>
<property name="suffix" value=".jsp"></property>
</bean>
<mvc:default-servlet-handler/>
<mvc:annotation-driven></mvc:annotation-driven>
<!-- 配置文件上传解析器；id必须是multipartResolver -->
<bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
<property name="maxUploadSize" value="#{1024*1024*20}"></property>
<!-- 设置默认的编码 -->
<property name="defaultEncoding" value="utf-8"></property>
</bean>
</beans>
3.UploadController
package com.lql;
import java.io.File;
import java.io.IOException;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.multipart.MultipartFile;
@Controller
public class UploadController {
/**
* 测试多文件上传
* @param username
* @param file
* @param model
* @return
*/
@RequestMapping("/upload")
public String upload(@RequestParam(value="username",required=false)String username,
@RequestParam("headerimg")MultipartFile[] file,
Model model){
System.out.println("上传的文件的信息");
for(MultipartFile multipartFile : file){
if(!multipartFile.isEmpty()){
//文件保存
try {
multipartFile.transferTo(new File("E:\\upload\\"+multipartFile.getOriginalFilename()));
model.addAttribute("msg","文件上传成功了！");
} catch (Exception e) {
model.addAttribute("msg","文件上传失败了！"+e.getMessage());
}
}
}return "forward:/index.jsp";
}
/*@RequestMapping("/upload")
public String upload(@RequestParam(value="username",required=false)String username,
@RequestParam("headerimg")MultipartFile file,
Model model){
System.out.println("上传的文件的信息");
System.out.println("文件项name："+file.getName());
System.out.println("文件的名字："+file.getOriginalFilename());
//文件保存
try {
file.transferTo(new File("E:\\upload\\"+file.getOriginalFilename()));
model.addAttribute("msg","文件上传成功了！");
} catch (Exception e) {
model.addAttribute("msg","文件上传失败了！"+e.getMessage());
}
return "forward:/index.jsp";
}*/
}
十、拦截器
1、介绍
- SpringMVC提供了拦截器机制，允许运行目标方法之前进行一些拦截工作，或者目标方法运行之后进行一些其他处理
- Filter（javaWeb）
- HandlerInterceptor（SpringMVC）
| 方法 | 时机 |
|---|---|
| preHandle | 在目标方法之前调用，返回Boolean【return true：（chain.doFilter()）放行；return false：不放行】 |
| postHandle | 在目标方法运行之后调用（目标方法调用之后） |
| afterCompletion | 在请求整个完成之后（来到目标页面之后）（chain.doFilter()放行）（资源响应之后） |
2、设置拦截器
-
实现HandlerInterceptor接口（手动实现接口方法）
-
配置拦截器
3、拦截器的运行流程
1.单个拦截器
- 正常运行流程：
拦截器的preHandle—-》目标方法—-》拦截器postHandle—-》页面—-》拦截器的afterCompletion
- 运行结果
MyFirstInterceptor...preHandle...
test01....
MyFirstInterceptor...postHandle...
success.jsp....
MyFirstInterceptor...afterCompletion
- 其他流程：
- 只要preHandle不放行就没有以后的流程
- 只要放行了，afterCompletion都会执行
2.多个拦截器:
- 正常流程：
MyFirstInterceptor...preHandle...
MySecondInterceptor...preHandle...
test01....
MySecondInterceptor...postHandle...
MyFirstInterceptor...postHandle...
success.jsp....
MySecondInterceptor...afterCompletion
MyFirstInterceptor...afterCompletion
- 异常流程(不放行)
- 哪一块不放行从此以后都没有
- ==已经放行了的拦截器afterCompletion总会执行==
- 例如：MySecondInterceptor不放行
MyFirstInterceptor...preHandle...
MySecondInterceptor...preHandle...
MyFirstInterceptor...afterCompletion
3.执行次序
| 拦截器 | 执行流程 |
|---|---|
| preHandle | 顺序执行 |
| postHandle | 逆序执行 |
| afterCompletion | 逆序执行 |
4、源码
try {
ModelAndView mv = null;
Exception dispatchException = null;
try {
processedRequest = checkMultipart(request);
multipartRequestParsed = (processedRequest != request);
// Determine handler for the current request.拿到方法的执行链，包含拦截器
mappedHandler = getHandler(processedRequest);
if (mappedHandler == null) {
noHandlerFound(processedRequest, response);
return;
}
// Determine handler adapter for the current request.
HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
// Process last-modified header, if supported by the handler.
String method = request.getMethod();
boolean isGet = "GET".equals(method);
if (isGet || "HEAD".equals(method)) {
long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
return;
}
}
//拦截器preHandle执行位置；有一个拦截器返回false目标方法都不会执行；直接跳到afterCompletion
if (!mappedHandler.applyPreHandle(processedRequest, response)) {
return;
}
// Actually invoke the handler.适配器执行目标方法
mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
if (asyncManager.isConcurrentHandlingStarted()) {
return;
}
applyDefaultViewName(processedRequest, mv);
//目标方法只要正常，就会走到postHandle；任何期间有异常
mappedHandler.applyPostHandle(processedRequest, response, mv);
}
catch (Exception ex) {
dispatchException = ex;
}
catch (Throwable err) {
// As of 4.3, we're processing Errors thrown from handler methods as well,
// making them available for @ExceptionHandler methods and other scenarios.
dispatchException = new NestedServletException("Handler dispatch failed", err);
}
//页面渲染；如果完蛋也是直接跳到afterCompletion；
processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
}
catch (Exception ex) {
triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
}
catch (Throwable err) {
triggerAfterCompletion(processedRequest, response, mappedHandler,
new NestedServletException("Handler processing failed", err));
}
finally {
if (asyncManager.isConcurrentHandlingStarted()) {
// Instead of postHandle and afterCompletion
if (mappedHandler != null) {
mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
}
}
else {
// Clean up any resources used by a multipart request.
if (multipartRequestParsed) {
cleanupMultipart(processedRequest);
}
}
}
}
1.preHandler
boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {
HandlerInterceptor[] interceptors = getInterceptors();
if (!ObjectUtils.isEmpty(interceptors)) {
for (int i = 0; i < interceptors.length; i++) {
HandlerInterceptor interceptor = interceptors[i];
//preHandle - true - false
if (!interceptor.preHandle(request, response, this.handler)) {
//执行完afterCompletion();
triggerAfterCompletion(request, response, null);
return false;
}
//记录一下索引
this.interceptorIndex = i;
}
}
return true;
}
2.postHandle
void applyPostHandle(HttpServletRequest request, HttpServletResponse response, @Nullable ModelAndView mv)
throws Exception {
HandlerInterceptor[] interceptors = getInterceptors();
if (!ObjectUtils.isEmpty(interceptors)) {
//逆序执行每个拦截器的postHandle
for (int i = interceptors.length - 1; i >= 0; i--) {
HandlerInterceptor interceptor = interceptors[i];
interceptor.postHandle(request, response, this.handler, mv);
}
}
}
3.页面渲染逻辑
private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
@Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
@Nullable Exception exception) throws Exception {
boolean errorView = false;
if (exception != null) {
if (exception instanceof ModelAndViewDefiningException) {
logger.debug("ModelAndViewDefiningException encountered", exception);
mv = ((ModelAndViewDefiningException) exception).getModelAndView();
}
else {
Object handler = (mappedHandler != null ? mappedHandler.getHandler() : null);
mv = processHandlerException(request, response, handler, exception);
errorView = (mv != null);
}
}
// Did the handler return a view to render?
if (mv != null && !mv.wasCleared()) {
//页面渲染
render(mv, request, response);
if (errorView) {
WebUtils.clearErrorRequestAttributes(request);
}
}
else {
if (logger.isTraceEnabled()) {
logger.trace("No view rendering, null ModelAndView returned.");
}
}
if (WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
// Concurrent handling started during a forward
return;
}
if (mappedHandler != null) {
// Exception (if any) is already handled..
//页面正常执行afterCompletion；即使没走到这，afterCompletion总会执行
mappedHandler.triggerAfterCompletion(request, response, null);
}
}
4.afterCompletion
void triggerAfterCompletion(HttpServletRequest request, HttpServletResponse response, @Nullable Exception ex)
throws Exception {
HandlerInterceptor[] interceptors = getInterceptors();
if (!ObjectUtils.isEmpty(interceptors)) {
//有记录最后一个放行拦截器的索引（interceptorIndex），从他开始把之前所有的拦截器的afterCompletion都执行
for (int i = this.interceptorIndex; i >= 0; i--) {
HandlerInterceptor interceptor = interceptors[i];
try {
interceptor.afterCompletion(request, response, this.handler, ex);
}
catch (Throwable ex2) {
logger.error("HandlerInterceptor.afterCompletion threw exception", ex2);
}
}
}
}
5、流程总结图
6、Filter和拦截器使用时机
-
如果某些功能需要其他组件配合完成，我们就用拦截器
-
其它情况可以写filter
十一、国际化
1、简单国际化
1.写好国际化资源文件
-
login_en_US.properties
welcominfo=welcome to lql.com username=USERNAME password=PASSWORD loginBtn=LOGIN -
login_zh_CN.properties
welcominfo=\u6B22\u8FCE\u6765\u5230\u4EE3\u7801\u4E16\u754C username=\u7528\u6237\u540D password=\u5BC6\u7801 loginBtn=\u767B\u5F55
2.让Spring的ResourceBundleMessageSource管理国际化资源文件
<bean id="messageSource" class="org.springframework.context.support.ResourceBundleMessageSource">
<property name="basename" value="loginpro/login"></property>
</bean>
3.直接去页面取值
2、页面显示现象
- 是按照浏览器带来语言信息决定
3、javaWeb获取浏览器区域信息
Locale locale = Request.getLocale();
4、SpringMVC区域信息
- 由区域信息解析器得到
private LocaleResolver localeResolver;
- 默认会用一个
AcceptHeaderLocaleResolver- 所有用到区域信息的地方，都是用
AcceptHeaderLocaleResolver获取的
- 所有用到区域信息的地方，都是用
Locale locale =
(this.localeResolver != null ? this.localeResolver.resolveLocale(request) : request.getLocale());
@Override
public Locale resolveLocale(HttpServletRequest request) {
Locale defaultLocale = getDefaultLocale();
if (defaultLocale != null && request.getHeader("Accept-Language") == null) {
return defaultLocale;
}
Locale requestLocale = request.getLocale();
List<Locale> supportedLocales = getSupportedLocales();
if (supportedLocales.isEmpty() || supportedLocales.contains(requestLocale)) {
return requestLocale;
}
Locale supportedLocale = findSupportedLocale(request, supportedLocales);
if (supportedLocale != null) {
return supportedLocale;
}
return (defaultLocale != null ? defaultLocale : requestLocale);
}
5、区域信息解析器
1.AcceptHeaderLocaleResolver
- 使用请求头中的信息
@Override
public Locale resolveLocale(HttpServletRequest request) {
Locale defaultLocale = getDefaultLocale();
if (defaultLocale != null && request.getHeader("Accept-Language") == null) {
return defaultLocale;
}
Locale requestLocale = request.getLocale();
List<Locale> supportedLocales = getSupportedLocales();
if (supportedLocales.isEmpty() || supportedLocales.contains(requestLocale)) {
return requestLocale;
}
Locale supportedLocale = findSupportedLocale(request, supportedLocales);
if (supportedLocale != null) {
return supportedLocale;
}
return (defaultLocale != null ? defaultLocale : requestLocale);
}
@Override
public void setLocale(HttpServletRequest request, @Nullable HttpServletResponse response, @Nullable Locale locale) {
throw new UnsupportedOperationException(
"Cannot change HTTP accept header - use a different locale resolution strategy");
}
2.FixedLocaleResolver
- 使用系统默认的区域信息
@Override
public Locale resolveLocale(HttpServletRequest request) {
Locale locale = getDefaultLocale();
if (locale == null) {
locale = Locale.getDefault();
}
return locale;
}
@Override
public LocaleContext resolveLocaleContext(HttpServletRequest request) {
return new TimeZoneAwareLocaleContext() {
@Override
@Nullable
public Locale getLocale() {
return getDefaultLocale();
}
@Override
public TimeZone getTimeZone() {
return getDefaultTimeZone();
}
};
}
@Override
public void setLocaleContext( HttpServletRequest request, @Nullable HttpServletResponse response,
@Nullable LocaleContext localeContext) {
throw new UnsupportedOperationException("Cannot change fixed locale - use a different locale resolution strategy");
}
3.SessionLocaleResolver
-
区域信息是从session中获取
-
可以根据请求参数创建一个locale对象，把他放在session中
@Override
public Locale resolveLocale(HttpServletRequest request) {
Locale locale = (Locale) WebUtils.getSessionAttribute(request, this.localeAttributeName);
if (locale == null) {
locale = determineDefaultLocale(request);
}
return locale;
}
4.CookieLocaleResolver
- 从cookie中获取区域信息（麻烦）
@Override
public Locale resolveLocale(HttpServletRequest request) {
parseLocaleCookieIfNecessary(request);
return (Locale) request.getAttribute(LOCALE_REQUEST_ATTRIBUTE_NAME);
}
6、点击链接切换国际化
- 国际化信息是要能改变的
1.自定义区域信息解析器(推荐)
-
实现LocaleResolver
package com.lql.controller; import java.util.Locale; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; import org.springframework.web.servlet.LocaleResolver; public class MyLocaleResolver implements LocaleResolver{ /** * 解析返回locale */ @Override public Locale resolveLocale(HttpServletRequest req) { // TODO Auto-generated method stub //zh_CN Locale l = null; String localeStr = req.getParameter("locale"); //如果带了local参数就用指定的区域信息，如果没带就用请求头的 if(localeStr != null && !"".equals(localeStr)){ l = new Locale(localeStr.split("_")[0],localeStr.split("_")[1]); }else { l = req.getLocale(); } return l; } /** * 修改locale */ @Override public void setLocale(HttpServletRequest arg0, HttpServletResponse arg1, Locale arg2) { // TODO Auto-generated method stub throw new UnsupportedOperationException( "Cannot change HTTP accept header - use a different locale resolution strategy"); } }
-
配置springmvc.xml
<!-- 自定义区域信息解析器 -->
<bean id="localeResolver" class="com.lql.controller.MyLocaleResolver"></bean>
2.区域信息从session中拿
-
Controller
package com.lql.controller; import java.util.Locale; import javax.servlet.http.HttpSession; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.context.MessageSource; import org.springframework.stereotype.Controller; import org.springframework.ui.Model; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RequestParam; import org.springframework.web.servlet.i18n.SessionLocaleResolver; @Controller public class I18nTestController { @Autowired private MessageSource messageSource; @RequestMapping("/tologinpage") public String tologinPage(@RequestParam(value="locale",defaultValue="zh_CN")String localeStr,Locale locale,Model model,HttpSession session){ System.out.println(locale); String message = messageSource.getMessage("welcominfo", null, locale); System.out.println(message); //model.addAttribute("msg",message); /*//zh_CN Locale l = null; //如果带了local参数就用指定的区域信息，如果没带就用请求头的 if(localeStr != null && !"".equals(localeStr)){ l = new Locale(localeStr.split("_")[0],localeStr.split("_")[1]); }else { l = locale; } session.setAttribute(SessionLocaleResolver.class.getName() + ".LOCALE", l);*/ return "login"; } @RequestMapping("/test01") public String test01(){ return "login"; } }
-
配置springmvc.xml
<!-- 区域信息从session中拿 -->
<bean id="localeResolver" class="org.springframework.web.servlet.i18n.SessionLocaleResolver"></bean>
<mvc:interceptors>
<bean class="org.springframework.web.servlet.i18n.LocaleChangeInterceptor"></bean>
</mvc:interceptors>
十二、异常处理
1、源码
1.HandlerExceptionResolver
- 默认就是这几个:
org.springframework.web.servlet.HandlerExceptionResolver=org.springframework.web.servlet.mvc.method.annotation.ExceptionHandlerExceptionResolver,\
org.springframework.web.servlet.mvc.annotation.ResponseStatusExceptionResolver,\
org.springframework.web.servlet.mvc.support.DefaultHandlerExceptionResolver
2.异常处理
- 如果异常解析器都不能处理就直接抛出去（给tomcat）
private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
@Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
@Nullable Exception exception) throws Exception {
boolean errorView = false;
if (exception != null) { //如果有异常
if (exception instanceof ModelAndViewDefiningException) {
logger.debug("ModelAndViewDefiningException encountered", exception);
mv = ((ModelAndViewDefiningException) exception).getModelAndView();
}
else { //处理异常
Object handler = (mappedHandler != null ? mappedHandler.getHandler() : null);
mv = processHandlerException(request, response, handler, exception);
errorView = (mv != null);
}
}
// Did the handler return a view to render?
if (mv != null && !mv.wasCleared()) {
//来到页面
render(mv, request, response);
if (errorView) {
WebUtils.clearErrorRequestAttributes(request);
}
}
else {
if (logger.isTraceEnabled()) {
logger.trace("No view rendering, null ModelAndView returned.");
}
}
if (WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
// Concurrent handling started during a forward
return;
}
if (mappedHandler != null) {
// Exception (if any) is already handled..
mappedHandler.triggerAfterCompletion(request, response, null);
}
}
3.异常解析
- 所有异常解析器尝试解析
- 解析完成进行后续
- 解析失败下一个解析器
@Nullable
protected ModelAndView processHandlerException(HttpServletRequest request, HttpServletResponse response,
@Nullable Object handler, Exception ex) throws Exception {
// Success and error responses may use different content types
request.removeAttribute(HandlerMapping.PRODUCIBLE_MEDIA_TYPES_ATTRIBUTE);
// Check registered HandlerExceptionResolvers...
ModelAndView exMv = null;
if (this.handlerExceptionResolvers != null) {
for (HandlerExceptionResolver resolver : this.handlerExceptionResolvers) {
exMv = resolver.resolveException(request, response, handler, ex);
if (exMv != null) {
break;
}
}
}
if (exMv != null) {
if (exMv.isEmpty()) {
request.setAttribute(EXCEPTION_ATTRIBUTE, ex);
return null;
}
// We might still need view name translation for a plain error model...
if (!exMv.hasView()) {
String defaultViewName = getDefaultViewName(request);
if (defaultViewName != null) {
exMv.setViewName(defaultViewName);
}
}
if (logger.isTraceEnabled()) {
logger.trace("Using resolved error view: " + exMv, ex);
}
else if (logger.isDebugEnabled()) {
logger.debug("Using resolved error view: " + exMv);
}
WebUtils.exposeErrorRequestAttributes(request, ex, getServletName());
return exMv;
}
throw ex;
}
2、异常解析器用法
ExceptionHandlerExceptionResolver：@ExceptionHandler
- Controller类
ResponseStatusExceptionResolver：@ResponseStatus
- 给自定义异常上标注
- 运行结果
DefaultHandlerExceptionResolver
- 判断是否SpringMVC自己的异常
如：HttpRequestMethodNotSupportedException
如果没人处理，报错
- 源码（遍历异常解析器）
- 默认的异常
@Override @Nullable protected ModelAndView doResolveException( HttpServletRequest request, HttpServletResponse response, @Nullable Object handler, Exception ex) { try { if (ex instanceof HttpRequestMethodNotSupportedException) { return handleHttpRequestMethodNotSupported( (HttpRequestMethodNotSupportedException) ex, request, response, handler); } else if (ex instanceof HttpMediaTypeNotSupportedException) { return handleHttpMediaTypeNotSupported( (HttpMediaTypeNotSupportedException) ex, request, response, handler); } else if (ex instanceof HttpMediaTypeNotAcceptableException) { return handleHttpMediaTypeNotAcceptable( (HttpMediaTypeNotAcceptableException) ex, request, response, handler); } else if (ex instanceof MissingPathVariableException) { return handleMissingPathVariable( (MissingPathVariableException) ex, request, response, handler); } else if (ex instanceof MissingServletRequestParameterException) { return handleMissingServletRequestParameter( (MissingServletRequestParameterException) ex, request, response, handler); } else if (ex instanceof ServletRequestBindingException) { return handleServletRequestBindingException( (ServletRequestBindingException) ex, request, response, handler); } else if (ex instanceof ConversionNotSupportedException) { return handleConversionNotSupported( (ConversionNotSupportedException) ex, request, response, handler); } else if (ex instanceof TypeMismatchException) { return handleTypeMismatch( (TypeMismatchException) ex, request, response, handler); } else if (ex instanceof HttpMessageNotReadableException) { return handleHttpMessageNotReadable( (HttpMessageNotReadableException) ex, request, response, handler); } else if (ex instanceof HttpMessageNotWritableException) { return handleHttpMessageNotWritable( (HttpMessageNotWritableException) ex, request, response, handler); } else if (ex instanceof MethodArgumentNotValidException) { return handleMethodArgumentNotValidException( (MethodArgumentNotValidException) ex, request, response, handler); } else if (ex instanceof MissingServletRequestPartException) { return handleMissingServletRequestPartException( (MissingServletRequestPartException) ex, request, response, handler); } else if (ex instanceof BindException) { return handleBindException((BindException) ex, request, response, handler); } else if (ex instanceof NoHandlerFoundException) { return handleNoHandlerFoundException( (NoHandlerFoundException) ex, request, response, handler); } else if (ex instanceof AsyncRequestTimeoutException) { return handleAsyncRequestTimeoutException( (AsyncRequestTimeoutException) ex, request, response, handler); } } catch (Exception handlerEx) { if (logger.isWarnEnabled()) { logger.warn("Failure while trying to resolve exception [" + ex.getClass().getName() + "]", handlerEx); } } return null; }
3、集中处理异常（推荐）
-
@ControllerAdvice专门处理异常的类
package com.lql.controller; import org.springframework.web.bind.annotation.ControllerAdvice; import org.springframework.web.bind.annotation.ExceptionHandler; import org.springframework.web.servlet.ModelAndView; /** * 集中处理所有异常 * @author 陆乾龙 * * 1、集中处理所有异常的类加入到ioc容器中 * 2、@ControllerAdvice专门处理异常的类 */ @ControllerAdvice public class MyFocusExceptionController { @ExceptionHandler(value={ArithmeticException.class}) public ModelAndView handleException01(Exception exception){ System.out.println("全局的handleException01...."+exception); // ModelAndView modelAndView = new ModelAndView("myerror"); modelAndView.addObject("ex", exception); //视图解析器拼串 return modelAndView; } /*@ExceptionHandler(value={Exception.class}) public ModelAndView handleException02(Exception exception){ System.out.println("全局的handleException02...."+exception); // ModelAndView modelAndView = new ModelAndView("myerror"); modelAndView.addObject("ex", exception); //视图解析器拼串 return modelAndView; }*/ }
4、SimpleMappingExceptionResolver
-
通过配置的方式进行异常处理
十三、SpringMVC的运行流程
- ==所有请求，前端控制器（DispatcherServlet）收到请求，调用doDispatch进行处理==
- ==根据HandlerMapping中保存的请求映射信息找到处理当前请求的处理器执行链（包含拦截器）==
- ==根据当前处理器找到它的HandlerAdapter（适配器）==
- ==拦截器的preHandle先执行==
- ==适配器执行目标方法，并返回ModelAndView==
- ModelAttribute注解标注的方法提前运行
- 确定目标方法用的参数（执行目标方法的时候）
- 有注解
- 没注解
- 看是否Model、Map以及其他的
- 如果是自定义类型
- 看隐含模型中有没有
- 有：从隐含模型中拿
- 没有：看是否SessionAttribute标注的属性
- 是：从Session中拿（拿不到会抛异常）
- 看隐含模型中有没有
- 都不是，就利用反射创建对象
- ==拦截器的postHandle执行==
- ==处理结果（页面渲染流程）==
- ==如果有异常，使用异常解析器处理异常（处理完后还会返回ModelAndView）==
- ==调用render进行页面渲染==
- 视图解析器根据视图名得到视图对象
- 视图对象调用render方法
- ==执行拦截器的afterCompletion==
十四、SpringMVC与Spring整合
1、目的（分工明确）
2、配置文件
| 配置文件 | 配置相关 |
|---|---|
| SpringMVC | 网站转发逻辑、网站功能（视图解析器，文件上传解析器，支持ajax，等等） |
| Spring | 业务（事务控制，数据源，等等） |
- springmvc.xml中加入
<import resource="spring.xml"/>可以合并配置文件
3、SpringMVC和Spring分容器
- Spring管理业务逻辑组件
- SpringMVC管理控制器组件
use-default-filters="false"：禁用默认行为，让include-filter起作用
4、 Spring MVC 配置文件中引用业务层的 Bean
-
多个 Spring IOC 容器之间可以设置为父子关系，以实现良好的解耦。
-
Spring MVC WEB 层容器可作为 “业务层” Spring 容器的子容器
- 即 WEB 层容器可以引用业务层容器的 Bean，而业务层容器却访问不到 WEB 层容器的 Bean
